Box

Open and connect
Discreet electrical, data and multimedia connections for work stations.
Box

Producto

Description

Built in multiple connection box
Formed of two elements: a metallic structure that is built into the table with a rapid fixing system and a module to incorporate sockets.
Box is available for 4 or 6 elements.

Flexibility in connection
Electrification kits are easy to extract, which facilitates their exchange in the same Box model. Completely wired internally and power input through cable with rapid connector at the end.
Enables the combination of electrical, data and multimedia sockets.

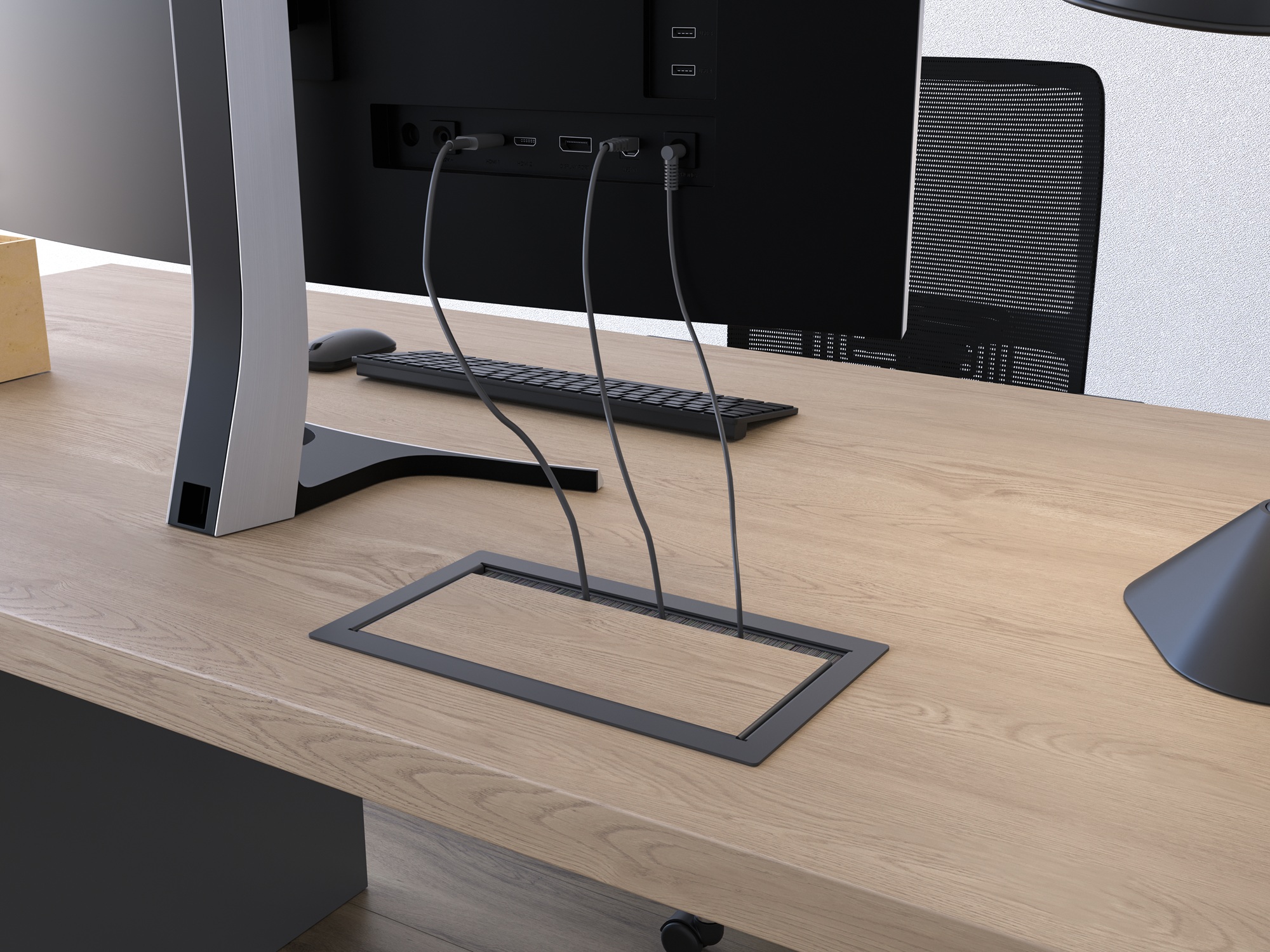

The Box Plus model enables adaptation of the top to the colour of the desk, leather or other materials.

Details that make us different

Available in white  | IB Connect
Configurable multimedia  | IB Connect

Applications

  • Operational office furniture.

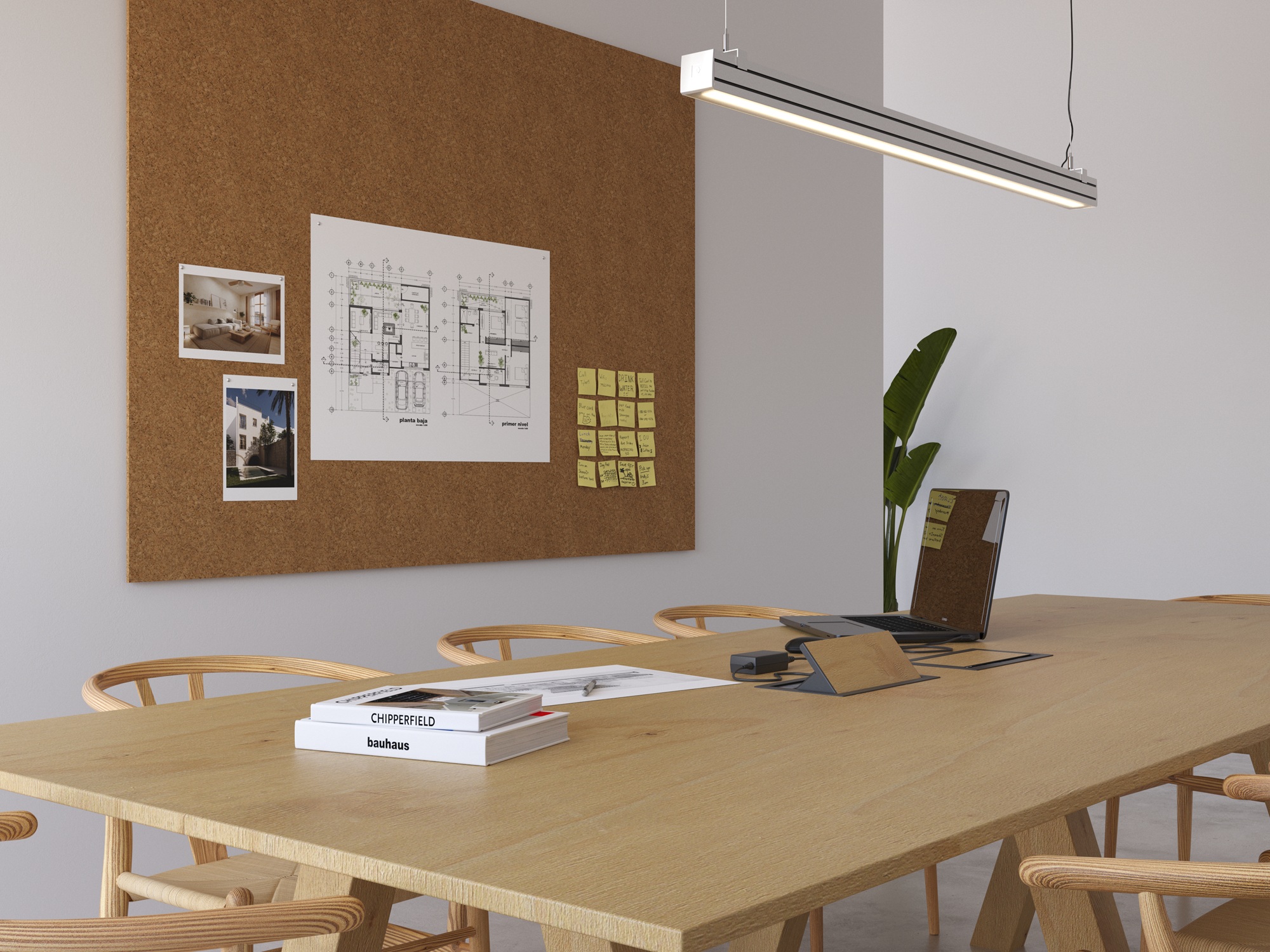

  • Audiovisual and meeting tables.
  • Libraries.
  • Hotel Furniture.

Features

  • Makes it possible to keep equipment connected with the cover closed thanks to its dustguards.
  • For boards with a thickness of 20mm. to 35mm. For thicker boards, please consult.
  • Quick and easy to change communication modules.

Technical specifications

  • Steel box structure painted white (Ral 9016), grey (Ral 9006) or black (Ral 9017).
  • Cover opening 50º.
  • Electrification made of black (Ral 9017) or white (Ral 9010) lacquered aluminium.
  • Power input through flexible hose with rapid connector at the end.

Dimensions of the table cut

4 MODULE
Box (mm)
A 319 x B 154 x C 63,5
Table Cut (mm)
a’ 294 (+1) x b’ 147 (+0,5)


6 MODULE
Box (mm)
A 409 x B 154 x C 63,5
Table Cut (mm)
a’ 384 (+1) x b’ 147 (+0,5)

Technical drawing and levels

Dimensions of the table cut | IB Connect

Image Gallery

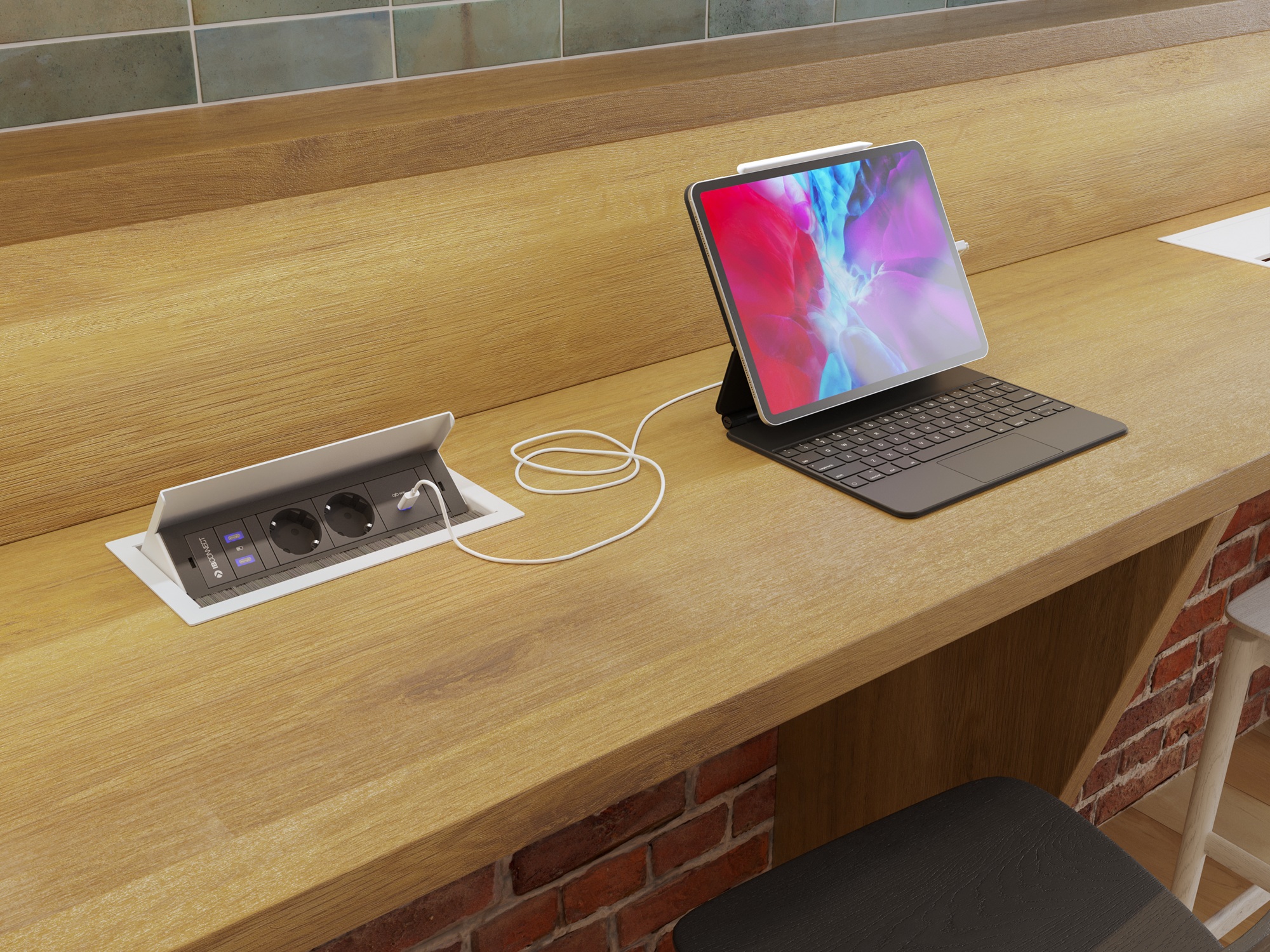

White Box for 4 modules, with electrification and multimedia
BOX 4 elements | IBConnect
BOX - 4 ELEMENTS

4 elements BOX made of white RAL 9016, black RAL 9017 or grey RAL 9006 painted steel.


References:
44101004/1
Box blanca
44101004/2
Box Negra
44101004/4
Box gris metalizada
BOX Plus | IBConnect
BOX Plus
4 elements BOX made of black RAL 9017 or grey RAL 9006 painted steel.
It has a recess of 1mm to incorporate the material cut.

References:
44102001/2
Box negra
44102001/4
Box gris metalizada
4xSocket outlets | IBConnect
CUBOBOX4 - 4 x SOCKET OUTLET

4 Socket outlets fully wired.
Power input through cable with male rapid connector on end.
Mounted on aluminium profile.


References:
34101003/1
T. Schuko blanco
34101003/3
T. Schuko gris antracita
34101003F1
Toma Francesa blanco
34101003F3
Toma Francesa gris antracita
34101003i10-1
34101003i10-3
34101003D1
34101003D3
34101003S10-1
34101003S10-3
34101003B1
Toma Británica blanca
34101003B3
Toma Británica gris antracita
34101003A1
Toma Americana blanca
34101003A3
Toma Francesa gris antracita
34101003E1
Toma Euroamericana blanca
34101003E3
Toma Euroamericana gris antracita
34101003AU1
34101003AU3
3xSocket outlets + 1x2RJ45 cover | IBConnect
CUBOBOX4 - 3 x SOCKET OUTLET + 1 x 2 RJ45 COVER
3 Socket outlets fully wired.
1 cover for 2 RJ45 connectors compatible with Keystone system (connectors not included).
Power input through cable with male rapid connector on end.
Mounted on aluminium profile.

References:
34102003/1
T. Schuko blanco
34102003/3
T. Schuko gris antracita
34102003F1
Toma Francesa blanco
34102003F3
Toma Francesa gris antracita
34102003i10-1
34102003i10-3
34102003D1
34102003D3
34102003S10-1
34102003S10-3
34102003B1
Toma Británica blanca
34102003B3
Toma Británica gris antracita
34102003A1
Toma Americana blanca
34102003A3
Toma Americana gris antracita
34102003E1
Toma Euroamericana blanca
34102003E3
Toma Euroamericana gris antracita
34102003AU1
34102003AU3
3xSocket outlets + 1x1RJ45 cover + 1xUSB 2.0 A/A | IBConnect
CUBOBOX4 - 3 x SOCKET OUTLET + 1 x 1 RJ45 COVER + 1 x USB 2.0 A/A
3 Socket outlets fully wired.
1 cover for 1 RJ45 connector compatible with Keystone system (connectors not included).
1 USB 2.0 A/A connector female/female.
Power input through cable with male rapid connector on end.
Mounted on aluminium profile.

References:
34103001/1
T. Schuko blanco
34103001/3
T. Schuko gris antracita
34103001F1
Toma Francesa blanco
34103001F3
Toma Francesa gris antracita
34103001i10-1
34103001i10-3
34103001D1
34103001D3
34103001S10-1
34103001S10-3
34103001B1
Toma Británica blanca
34103001B3
Toma Británica gris antracita
34103001A1
Toma Americana blanca
34103001A3
Toma Americana gris antracita
34103001E1
Toma Euroamericana blanca
34103001E3
Toma Euroamericana gris antracita
34103001AU1
34103001AU3
1xSocket outlet + 2xRed socket outlets + 1x2RJ45 cover | IBConnect
CUBOBOX4 - 1 x SOCKET OUTLET + 2 x RED SOCKET OUTLET + 1 x 2 RJ45 COVER
1 Socket outlet fully wired.
2 Red socket outlets fully wired.
1 cover for 2 RJ45 connectors compatible with Keystone system (connectors not included).
Power input through 2 cables with: black male rapid connector / red male rapid connector for red socket outlets.
Mounted on aluminium profile.

References:
34102004/1
T. Schuko blanco
34102004/3
T. Schuko gris antracita
34102004F1
Toma Francesa blanco
34102004F3
Toma Francesa gris antracita
34102004i10-1
34102004i10-3
34102004D1
34102004D3
34102004S10-1
34102004S10-3
34102004B1
Toma Británica blanca
34102004B3
Toma Británica gris antracita
34102004A1
Toma Americana blanca
34102004A3
Toma Americana gris antracita
34102004E1
Toma Euroamericana blanca
34102004E3
Toma Euroamericana gris antracita
34102004AU1
34102004AU3
3xSocket outlets + 1xEmpty module | IBConnect
CUBOBOX4 - 3 x SOCKET OUTLET + 1 x EMPTY MODULE

3 Socket outlets fully wired.
1 empty module.
Power input through cable with male rapid connector on end.
Mounted on aluminium profile.


References:
32112001/1
T. Schuko blanco
32112001/3
T. Schuko gris antracita
32112001F1
Toma Francesa blanco
32112001F3
Toma Francesa gris antracita
32112001i10-1
32112001i10-3
32112001D1
32112001D3
32112001S10-1
32112001S10-3
32112001B1
Toma Británica blanca
32112001B3
Toma Británica gris antracita
32112001A1
Toma Americana blanca
32112001A3
Toma Americana gris antracita
32112001E1
Toma Euroamericana blanca
32112001E3
Toma Euroamericana gris antracita
32112001AU1
32112001AU3
2xSocket outlets + 2xempty module | IBConnect
CUBOBOX4 - 2 x SOCKET OUTLET + 2 x EMPTY MODULE
2 Socket outlets fully wired.
2 empty modules.
Power input through cable with male rapid connector on end.
Mounted on aluminium profile.

References:
32112002/1
T. Schuko blanco
32112002/3
T. Schuko gris antracita
32112002F1
Toma Francesa blanco
32112002F3
Toma Francesa gris antracita
32112002i10-1
32112002i10-3
32112002D1
32112002D3
32112002S10-1
32112002S10-3
32112002B1
Toma Británica blanca
32112002B3
Toma Británica gris antracita
32112002A1
Toma Americana blanca
32112002A3
Toma Americana gris antracita
32112002E1
Toma Euroamericana blanca
32112002E3
Toma Euroamericana gris antracita
32112002AU1
32112002AU3
1xSocket outlet + 2xRed socket outlets + 1xEmpty module | IBConnect
CUBOBOX4 - 1 x SOCKET OUTLET + 2 x RED SOCKET OUTLET + 1 x EMPTY MODULE
1 Socket outlet fully wired.
2 Red socket outlets fully wired.
1 empty module.
Power input through 2 cables with: black male rapid connector / red male rapid connector for red socket outlets.
Mounted on aluminium profile.

References:
32112003/1
T. Schuko blanco
32112003/3
T. Schuko gris antracita
32112003F1
Toma Francesa blanco
32112003F3
Toma Francesa gris antracita
32112003i10-1
32112003i10-3
32112003D1
32112003D3
32112003S10-1
32112003S10-3
32112003B1
Toma Británica blanca
32112003B3
Toma Británica gris antracita
32112003A1
Toma Americana blanca
32112003A3
Toma Americana gris antracita
32112003E1
Toma Euroamericana blanca
32112003E3
Toma Euroamericana gris antracita
32112003AU1
32112003AU3
BOX 6 elements | IBConnect
BOX - 6 ELEMENTS

6 elements BOX made of white RAL 9016, black RAL 9017 or grey RAL 9006 painted steel.


References:
44101006/1
Box blanca
44101006/2
Box Negra
44101006/4
Box gris metalizada
6xSocket outlets | IBConnect
CUBOBOX6 - 6 x SOCKET OUTLET

6 Socket outlets fully wired.
Power input through cable with male rapid connector on end.
Mounted on aluminium profile.


References:
34101005/1
T. Schuko blanco
34101005/3
T. Schuko gris antracita
34101005F1
Toma Francesa blanco
34101005F3
Toma Francesa gris antracita
34101005i10-1
34101005i10-3
34101005D1
34101005D3
34101005S10-1
34101005S10-3
34101005B1
Toma Británica blanca
34101005B3
Toma Británica gris antracita
34101005A1
Toma Americana blanca
34101005A3
Toma Americana gris antracita
34101005E1
Toma Euroamericana blanca
34101005E3
Toma Euroamericana gris antracita
34101005AU1
34101005AU3
4xSocket outlets + 2x2 RJ45 cover | IB Connect
CUBOBOX6 - 4 x SOCKET OUTLET + 2 x 2 RJ45 COVER
4 Socket outlets fully wired.
2 covers for 2 RJ45 connectors compatible with Keystone system (connectors not included).
Power input through cable with male rapid connector on end.
Mounted on aluminium profile.

References:
34102007/1
T. Schuko blanco
34102007/3
T. Schuko gris antracita
34102007F1
Toma Francesa blanco
34102007F3
Toma Francesa gris antracita
34102007i10-1
34102007i10-3
34102007D1
34102007D3
34102007S10-1
34102007S10-3
34102007B1
Toma Británica blanca
34102007B3
Toma Británica gris antracita
34102007A1
Toma Americana blanca
34102007A3
Toma Americana gris antracita
34102007E1
Toma Euroamericana blanca
34102007E3
Toma Euroamericana gris antracita
34102007AU1
34102007AU3
2xSocket outlets + 2xRed socket outlets + 2x2RJ45 cover | IBConnect
CUBOBOX6 - 2 x SOCKET OUTLET + 2 x RED SOCKET OUTLET + 2 x 2 RJ45 COVER
2 Socket outlets fully wired.
2 Red socket outlets fully wired.
2 covers for 2 RJ45 connectors compatible with Keystone system (connectors not included).
Power input through 2 cables with: black male rapid connector / red male rapid connector for red socket outlets.
Mounted on aluminium profile.

References:
34102005/1
T. Schuko blanco
34102005/3
T. Schuko gris antracita
34102005F1
Toma Francesa blanco
34102005F3
Toma Francesa gris antracita
34102005i10-1
34102005i10-3
34102005D1
34102005D3
34102005S10-1
34102005S10-3
34102005B1
Toma Británica blanca
34102005B3
Toma Británica gris antracita
34102005A1
Toma Americana blanca
34102005A3
Toma Americana gris antracita
34102005E1
Toma Euroamericana blanca
34102005E3
Toma Euroamericana gris antracita
34102005AU1
34102005AU3
3xSocket outlets + 3xEmpty module | IBConnect
CUBOBOX6 - 3 x SOCKET OUTLET + 3 x EMPTY MODULE

3 Socket outlets fully wired.
3 empty modules.
Power input through cable with male rapid connector on end.
Mounted on aluminium profile.


References:
32112004/1
T. Schuko blanco
32112004/3
T. Schuko gris antracita
32112004F1
Toma Francesa blanco
32112004F3
Toma Francesa gris antracita
32112004i10-1
32112004i10-3
32112004D1
32112004D3
32112004S10-1
32112004S10-3
32112004B1
Toma Británica blanca
32112004B3
Toma Británica gris antracita
32112004A1
Toma Americana blanca
32112004A3
Toma Americana gris antracita
32112004E1
Toma Euroamericana blanca
32112004E3
Toma Euroamericana gris antracita
32112004AU1
32112004AU3
4xSocket outlets + 2xEmpty module | IBConnect
CUBOBOX6 - 4 x SOCKET OUTLET + 2 x EMPTY MODULE

4 Socket outlets fully wired.
2 empty modules.
Power input through cable with male rapid connector on end.
Mounted on aluminium profile.


References:
32112005/1
T. Schuko blanco
32112005/3
T. Schuko gris antracita
32112005F1
Toma Francesa blanco
32112005F3
Toma Francesa gris antracita
32112005i10-1
32112005i10-3
32112005D1
32112005D3
32112005S10-1
32112005S10-3
32112005B1
Toma Británica blanca
32112005B3
Toma Americana gris antracita
32112005A1
Toma Americana blanca
32112005A3
Toma Americana gris antracita
32112005E1
Toma Euroamericana blanca
32112005E3
Toma Euroamericana gris antracita
32112005AU1
32112005AU3
2xSocket outlets + 2xRed socket outlets + 2xEmpty module | IBConnect
CUBOBOX6 - 2 x SOCKET OUTLET + 2 x RED SOCKET OUTLET + 2 x EMPTY MODULE

2 Sockets outlets fully wired.
2 Red socket outlets fully wired.
2 empty modules.
Power input through 2 cables with: black male rapid connector / red male rapid connector for red socket outlets.
Mounted on aluminium profile.


References:
32112006/1
T. Schuko blanco
32112006/3
T. Schuko gris antracita
32112006F1
Toma Francesa blanco
32112006F3
Toma Francesa gris antracita
32112006i10-1
32112006i10-3
32112006D1
32112006D3
32112006S10-1
32112006S10-3
32112006B1
Toma Británica blanca
32112006B3
Toma Británica gris antracita
32112006A1
Toma Americana blanca
32112006A3
Toma Americana gris antracita
32112006E1
Toma Euroamericana blanca
32112006E3
Toma Euroamericana gris antracita
32112006AU1
32112006AU3
