Cap

More than just concealing
Access connections by simply opening a cover.
Cap

Producto

Description

Compatible with electrifications

Prepared for installation in a table and access to electrifications in the cable tray, regardless of the system and manufacturer. Ideal for combining with Cubo electrifications.

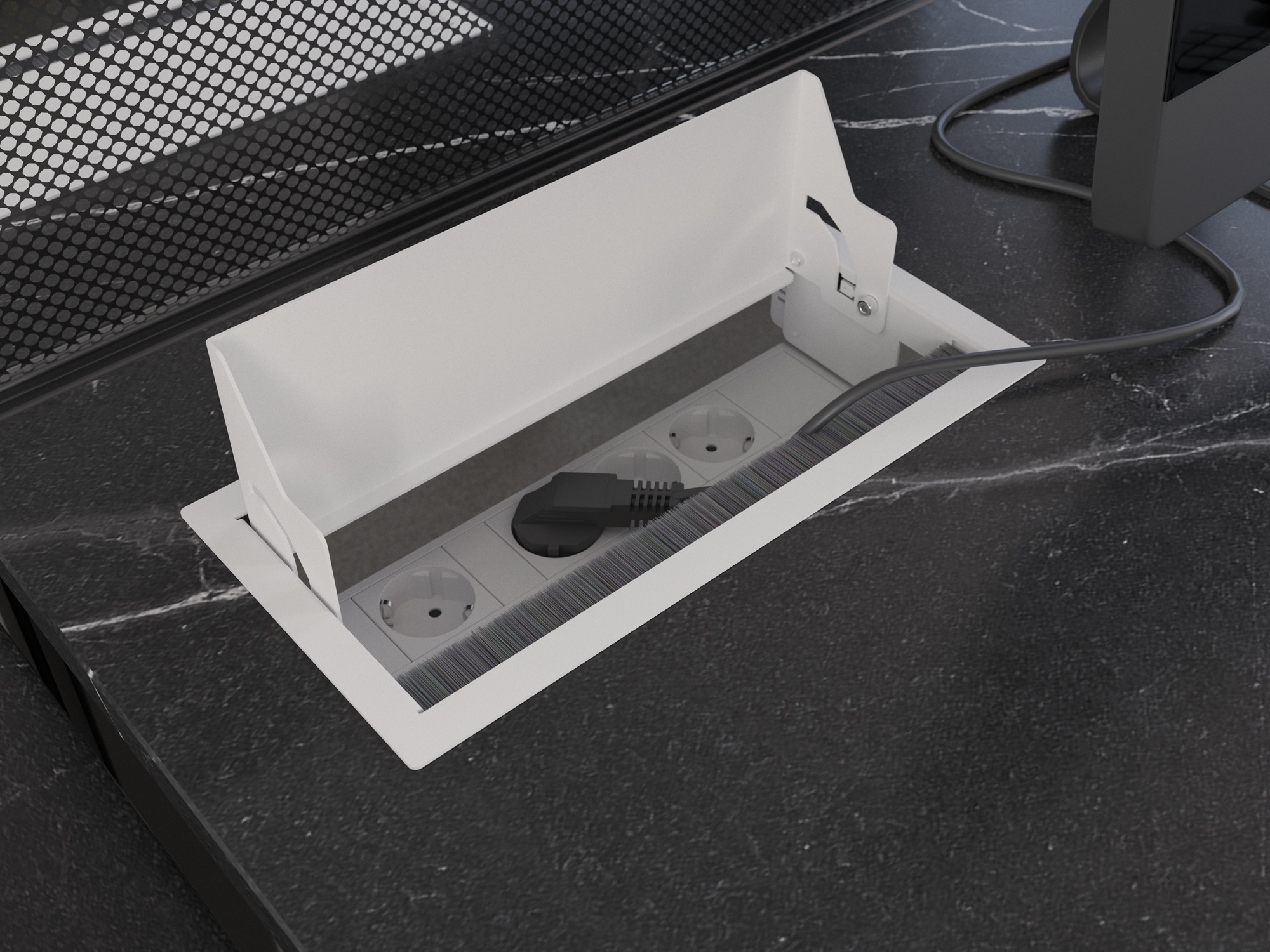

Allows to keep equipment connected with the cover closed, as the brush permit connected cables to pass through.

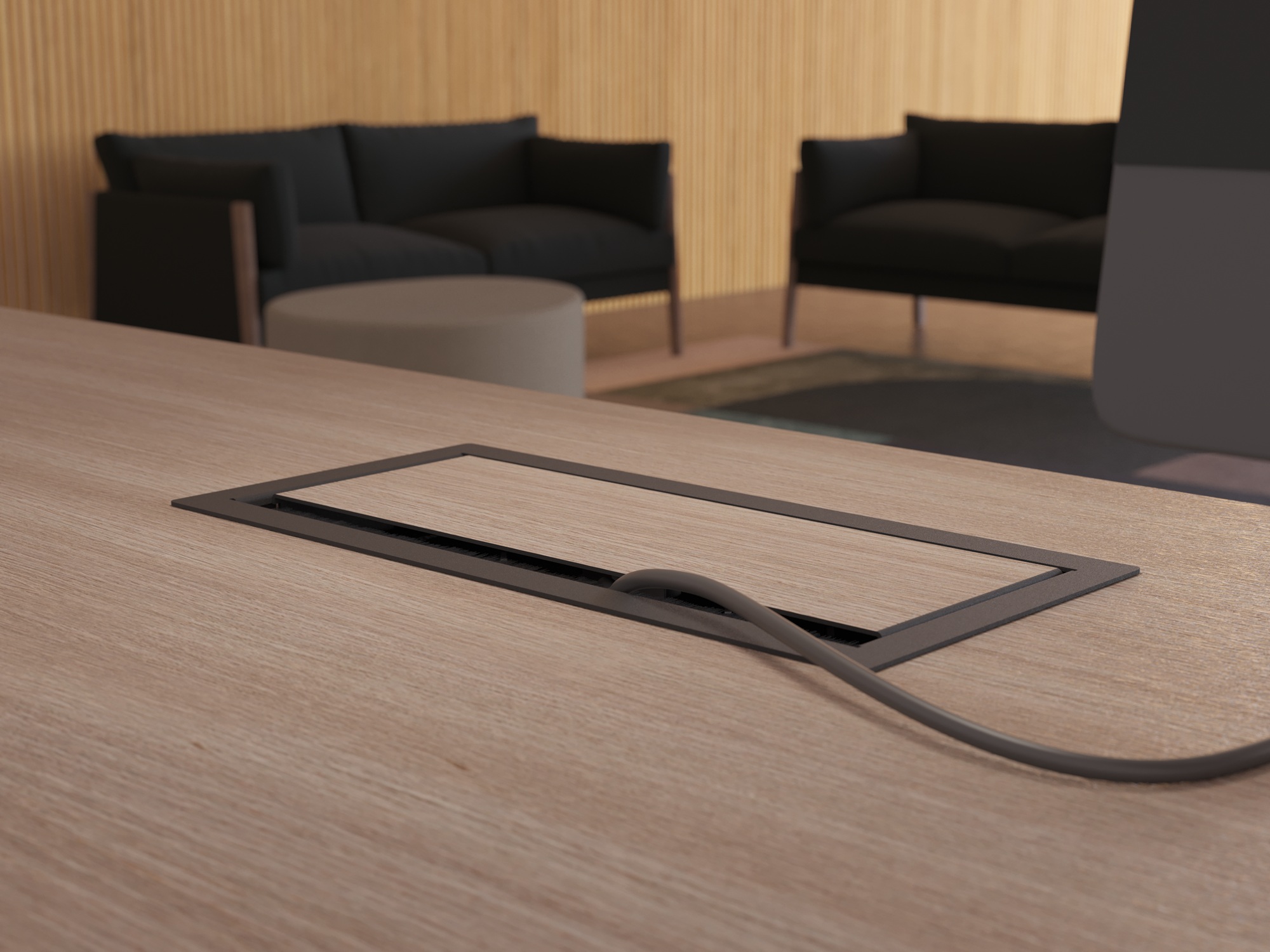

For installations where a more integrated finish is needed, the Cap Plus model fits the bill, since it allows adaptation of the cover to the colour of the desk, leather or other materials (1mm).



Applications

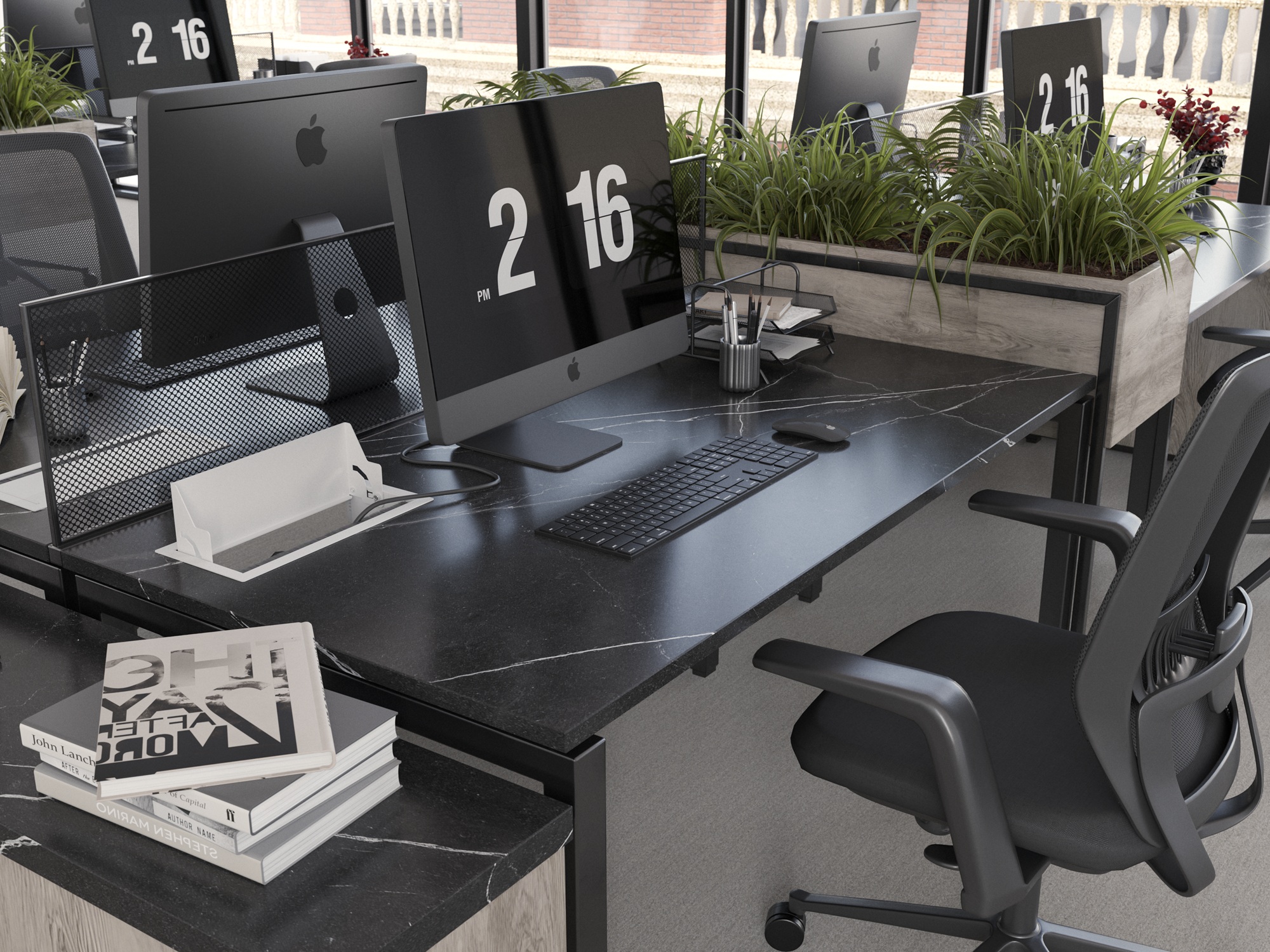

  • Operational office furniture.
  • Libraries.
  • Hotels.

Features

  • It allows to keep equipment connected with the cover closed thanks to its brush.
  • Quick fixing system to table, height adjustable.
  • Suitable for boards with a thickness of 20mm to 40mm.

Technical specifications

  • Steel box structure painted in white (RAL 9016), grey (RAL 9006) or black (RAL 9017).
  • Cap Plus only available in grey (RAL 9006) or black (RAL 9017).
  • Cover opening 90º.




Dimensions of the table cut

Cap (mm)
A 319 x B 154 x C 63,5

Table Cut (mm)
a’ 294 (+1) x b’ 147 (+0,5)



Details that make us different

  • White Available in white.





Measures

Cap | Dibujo técnico | IBConnect

Image Gallery

Detail of stratified Cap Plus cover closed.

Downloads

CAP, downloads:
CAP White | IB Connect
CAP White

CAP in white RAL 9016 painted steel.


References:
44201004/1
CAP blanca
Cap Black | IB Connect
Cap Black

CAP in black RAL 9017 painted steel.


References:
44201004/2
CAP negra
CAP Grey | IB Connect
Cap Grey

CAP in grey RAL 9006 painted steel.


References:
44201004/4
CAP gris metalizada
CAP Plus Black | IB Connect
CAP Plus Black
CAP Plus in black RAL 9017 painted steel.
It has a recess of 1mm to incorporate the material cut.

References:
44202004/2
CAP negra
CAP Plus Grey | IB Connect
CAP Plus Grey
CAP Plus in grey RAL 9006 painted steel.
It has a recess of 1mm to incorporate the material cut.

References:
44202004/4
CAP gris metalizada
