Functionality and elegance
Electrified box with automatic elevation for management work environments.
Top

Producto

Description

Integration

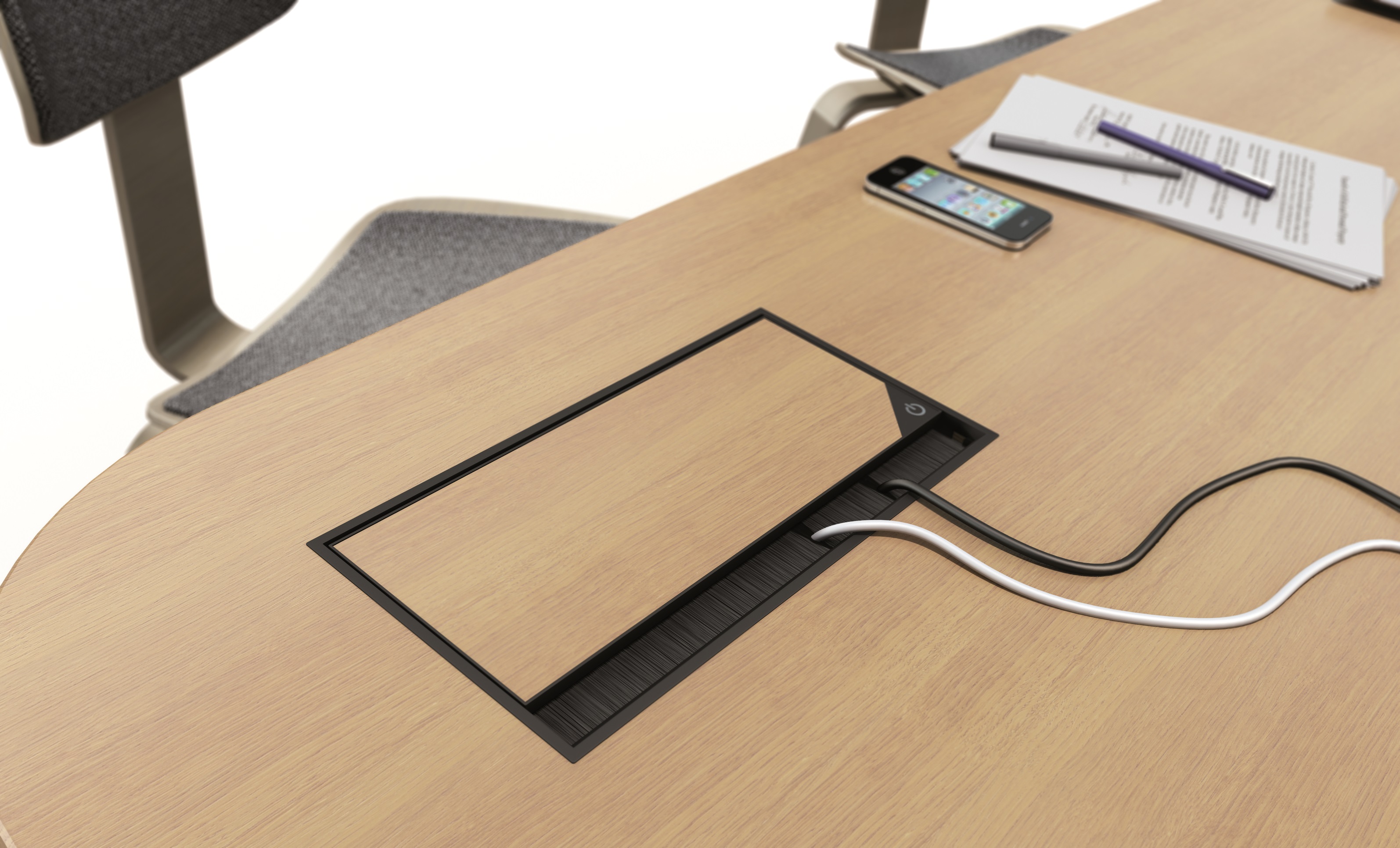

Reduced visual impact due to customisation of cover finishing with the material left over from cutting the table to install the Top box.

To facilitate installation, plastic frames are supplied to cover the cuts made in the table and save on edging.

Quietness

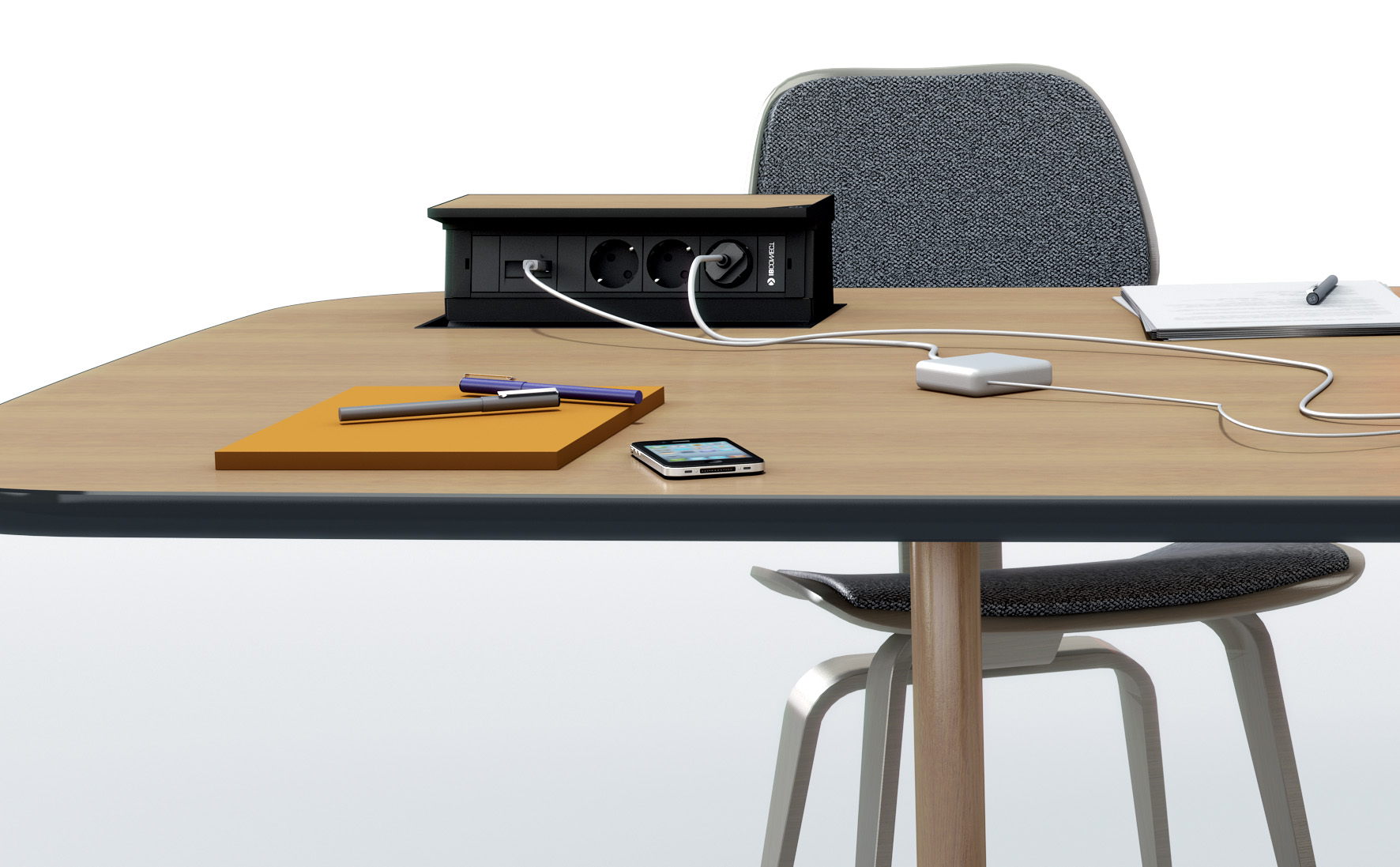

Precise and quietness vertical elevation. It is opened and closed by means of an electronic device controlled by a pushbutton integrated in the cover.

Applications

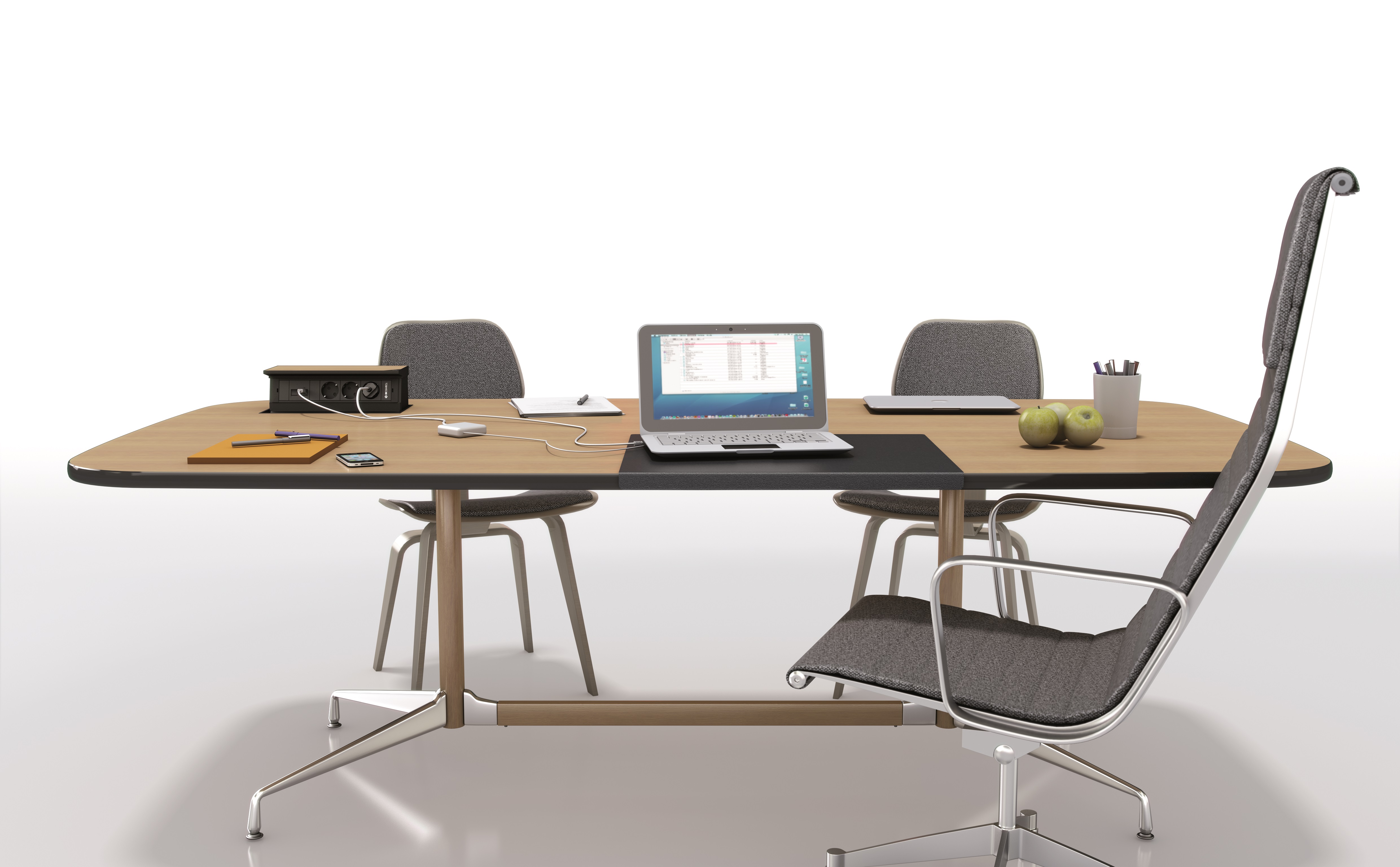

  • Management tables.
  • Meeting tables.
  • Hotel conference rooms.

Features

  • Power sockets, USB chargers, data and multimedia totally wired internally with visible access installed for quick connection.
  • Electrical supply through built-in male rapid connector.
  • For tables thicknesses of 25 to 40 mm. For thicker tables, create a recess in the table.
  • Cover is 5mm thick.

Technical specifications

  • Supply for lifting device through the same input as sockets.
  • Synchronous bi-directional motor.
  • Voltage 230v/50Hz
  • Condenser 0.12 microfarads/400Vca
  • Absorbed power 4W/VA
  • Motor temperature limit -10ºC +55ºC
  • Motor protection IP50
  • Minimum inversion pause: 0,1s.
  • Safe electronic closing system, with regulation of anti-trapping sensitivity.
  • Activation by means of highly sensitive membrane button.

Measures

Top | IBConnect


Details that make us different


Compatible with USB Smart Charging System | IBConnectCompatible with "Ultra-Compact USB Smart Charging System" up to 60W.






Image Gallery

Downloads

TOP, downloads:
Top | IB Connect
TOP
Frame for desk cut with lid ready to cover.
Mechanised lifting of electrification body.
Activation by lighted button on top cover.
Electrification kit consisting of 1 strip made of the following elements:
3 black socket outlets fully wired with 2,5mm2 halogen free cable.
2 RJ45 cat6 connectors.
All connections are fully wired internally to their inputs.
Power input through built-in male rapid connector.

References:
54103005/3
T. Schuko gris antracita
54103005F3
Toma Francesa gris antracita
54103005i10-3
54103005D3
54103005S10-3
54103005B3
Toma Británica gris antracita
54103005A3
Toma Americana gris antracita
54103005E3
Toma Euroamericana gris antracita
54103005AU3
