Simple, discreet and innovative. A new concept to connect, organise and conceal.
Prisma

Producto

Description

Installation on the surface
Its installation system is fixed to the surface. This makes it possible to secure it quickly and simply without machining the table. Any additional cable tray or securing accesories are needed.

Design
Its rotating lid hides the electrical sockets and multimedia elements when they are not in use. The entire cabling and fixation system are concealed, making it an ideal solution even for glass finishes.

Flexibility for connection
Combinations of electrical sockets, USB chargers, data and multimedia elements are allowed.

Alternatives
Prisma Surface
Its installation system allows it to be placed anywhere on the table, easily adapting to any thickness.

Prisma Support
Its raised installation is easily cleaned, making it the best solution for kitchens.

Applications

  • Office workstation furniture.
  • Executive tables.
  • Hotel rooms.
  • Glass furniture.

Features

  • Installation on the surface, for thicknesses of 1mm to 30mm.
  • Conceals power cables.
  • Hidden fixation system.
  • Cable organisation space at the top.
  • Quick and easy change of multimedia modules.

Technical specifications

  • Structure made of white (RAL 9016) or black (RAL 9011) lacquered aluminium profile.
  • Electric power supply by means of aluminium frame with black lacquered finish (RAL 9017).
  • Opening by means of 90° turn with locking and auto-return.
  • Power input through power cable with rapid connector on end.
  • Fixation system by means of adjustable clamps from 1mm to 30mm.



Dimensions of the table cut

Details that make us different

  • White Available in white.
  • Multmedia configurable Configurable multimedia.
  • A medida Custom-made.
  • Compatible Compatible with "Ultra-Compact USB Smart Charging System" up to 60W.



Measures

Image Gallery

White closed Prisma installed on an executive table.

Downloads

PRISMA, downloads:
PRISMA - 4xSocket outlet | IBConnect
PRISMA - 4 x SOCKET OUTLET
4 socket outlets fully wired.
Power input through cable with male rapid connector at end.
Fixation system by means of adjustable clamps (1mm-30mm).
Mounted on aluminium profile black lacquered.
Structure made of aluminium profile.
Opening by means of 90º turn with locking and auto-return.

References:
26101001/1
26101001/3
26101001F1
26101001F3
26101001i10-1
26101001i10-3
26101001D1
26101001D3
26101001S10-1
26101001S10-3
26101001B1
26101001B3
26101001A1
26101001A3
26101001E1
26101001E3
26101001AU1
26101001AU3
PRISMA - 3xSocket outlet + 1xEmpty module | IBConnect
PRISMA - 3 x SOCKET OUTLET + 1 x EMPTY MODULE
3 socket outlets fully wired.
1 empty module.
Power input through cable with male rapid connector at end.
Fixation system by means of adjustable clamps (1mm-30mm).
Mounted on aluminium profile black lacquered.
Structure made of aluminium profile.
Opening by means of 90º turn with locking and auto-return.

References:
26103001/1
26103001/3
26103001F1
26103001F3
26103001i10-1
26103001i10-3
26103001D1
26103001D3
26103001S10-1
26103001S10-3
26103001B1
26103001B3
26103001A1
26103001A3
26103001E1
26103001E3
26103001AU1
26103001AU3
PRISMA - 2xSocket outlet + 2xEmpty module | IBConnect
PRISMA - 2 x SOCKET OUTLET + 2 x EMPTY MODULE
2 socket outlets fully wired.
2 empty modules.
Power input through cable with male rapid connector at end.
Fixation system by means of adjustable clamps (1mm-30mm).
Mounted on aluminium profile black lacquered.
Structure made of aluminium profile.
Opening by means of 90º turn with locking and auto-return.

References:
26103002/1
26103002/3
26103002F1
26103002F3
26103002i10-1
26103002i10-3
26103002D1
26103002D3
26103002S10-1
26103002S10-3
26103002B1
26103002B3
26103002A1
26103002A3
26103002E1
26103002E3
26103002AU1
26103002AU3
PRISMA - 3xSocket outlet + 1xUSB charge + 1x1RJ45 cover | IBConnect
PRISMA - 3 x SOCKET OUTLET + 1 x USB CHARGER + 1 x 1 RJ45 COVER
3 socket outlets fully wired.
1 USB charger connector 5V/2A.
1 cover for 1 RJ45 connector compatible with Keystone system (connectors not included).
Power input through cable with male rapid connector at end.
Fixation system by means of adjustable clamps (1mm-30mm).
Mounted on aluminium profile black lacquered.
Structure made of aluminium profile.
Opening by means of 90º turn with locking and auto-return.

References:
26103003/1
26103003/3
26103003F1
26103003F3
26103003i10-1
26103003i10-3
26103003D1
26103003D3
26103003S10-1
26103003S10-3
26103003B1
26103003B3
26103003A1
26103003A3
26103003E1
26103003E3
26103003AU1
26103003AU3
PRISMA SURFACE - 4xSocket outlet | IBConnect
PRISMA SURFACE - 4 x SOCKET OUTLET
4 socket outlets fully wired.
Power input through cable with male rapid connector at end.
Fixation using bolts.
Mounted on aluminium profile black lacquered.
Structure made of aluminium profile.
Opening by means of 90º turn with locking and auto-return.

References:
26101002/1
26101002/3
26101002F1
26101002F3
26101002i10-1
26101002i10-3
26101002D1
26101002D3
26101002S10-1
26101002S10-3
26101002B1
26101002B3
26101002A1
26101002A3
26101002E1
26101002E3
26101002AU1
26101002AU3
PRISMA SURFACE - 3xSocket outlet + 1xEmpty module | IBConnect
PRISMA SURFACE - 3 x SOCKET OUTLET + 1 x EMPTY MODULE
3 socket outlets fully wired.
1 empty module.
Power input through cable with male rapid connector at end.
Fixation using bolts.
Mounted on aluminium profile black lacquered.
Structure made of aluminium profile.
Opening by means of 90º turn with locking and auto-return.

References:
26103004/1
26103004/3
26103004F1
26103004F3
26103004i10-1
26103004i10-3
26103004D1
26103004D3
26103004S10-1
26103004S10-3
26103004B1
26103004B3
26103004A1
26103004A3
26103004E1
26103004E3
26103004AU1
26103004AU3
PRISMA SURFACE - 2xSocket outlet + 2xEmpty module | IBConnect
PRISMA SURFACE - 2 x SOCKET OUTLET + 2 x EMPTY MODULE
2 socket outlets fully wired.
2 empty modules.
Power input through cable with male rapid connector at end.
Fixation using bolts.
Mounted on aluminium profile black lacquered.
Structure made of aluminium profile.
Opening by means of 90º turn with locking and auto-return.

References:
26103005/1
26103005/3
26103005F1
26103005F3
26103005i10-1
26103005i10-3
26103005D1
26103005D3
26103005S10-1
26103005S10-3
26103005B1
26103005B3
26103005A1
26103005A3
26103005E1
26103005E3
26103005AU1
26103005AU1

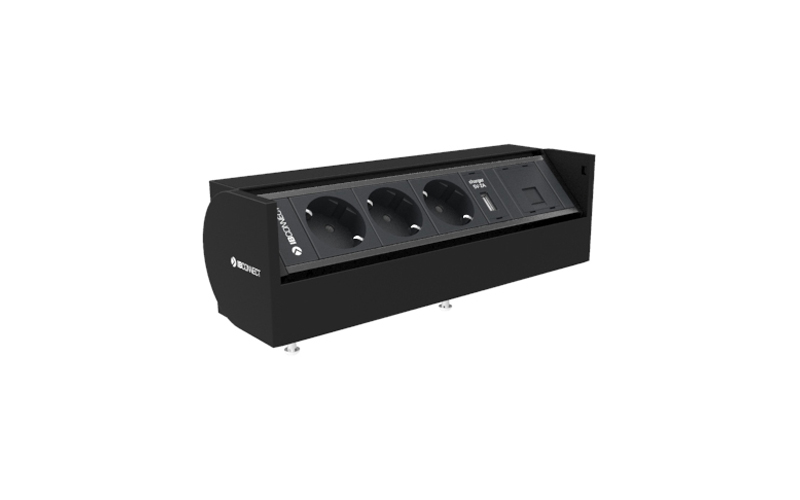

PRISMA SURFACE - 3xSocket outlet + 1xUSB charge + 1x1RJ45 cover | IBConnect
PRISMA SURFACE - 3 x SOCKET OUTLET + 1 x USB CHARGER + 1 x 1 RJ45 COVER
3 socket outlets fully wired.
1 USB charger connector 5V/2A.
1 cover for 1 RJ45 connector compatible with Keystone system (connectors not included).
Power input through cable with male rapid connector at end.
Fixation using bolts.
Mounted on aluminium profile black lacquered.
Structure made of aluminium profile.
Opening by means of 90º turn with locking and auto-return.

References:
26103006/1
26103006/3
26103006F1
26103006F3
26103006i10-1
26103006i10-3
26103006D1
26103006D3
26103006S10-1
26103006S10-3
26103006B1
26103006B3
26103006A1
26103006A3
26103006E1
26103006E3
26103006AU1
26103006AU3
PRISMA SUPPORT - 4xSocket outlet | IBConnect
PRISMA SUPPORT - 4 x SOCKET OUTLET
4 socket outlets fully wired.
Power input through cable with male rapid connector at end.
High fixation with support.
Mounted on aluminium profile black lacquered.
Structure made of aluminium profile.
Opening by means of 90º turn with locking and auto-return.

References:
26106001/1
26106001/3
26106001F1
26106001F3
26106001i10-1
26106001i10-3
26106001D1
26106001D3
26106001S10-1
26106001S10-3
26106001B1
26106001B3
26106001A1
26106001A3
26106001E1
26106001E3
26106001AU1
26106001AU3

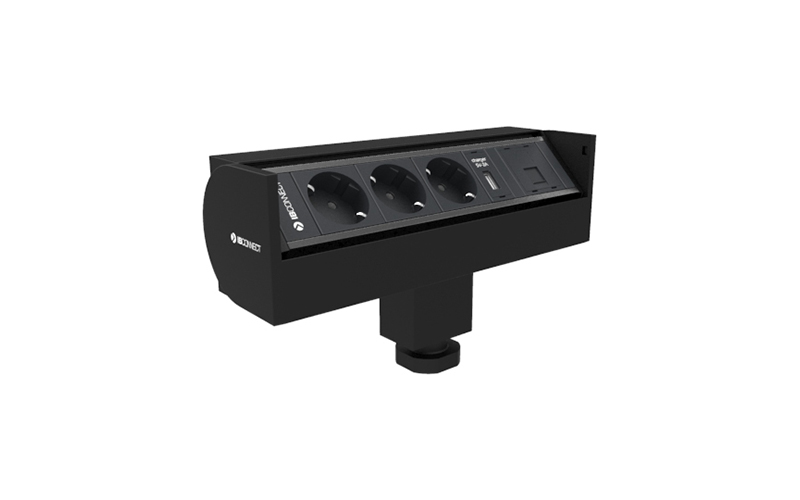

PRISMA SUPPORT - 3xSocket outlet + 1xUSB charge + 1x1RJ45 cover | IBConnect
PRISMA SUPPORT - 3 x SOCKET OUTLET + 1 x USB CHARGER + 1 x 1 RJ45 COVER
3 socket outlets fully wired.
1 USB charger connector 5V/2A.
1 cover for 1 RJ45 connector compatible with Keystone system (connectors not included).
Power input through cable with male rapid connector at end.
High fixation with support.
Mounted on aluminium profile black lacquered.
Structure made of aluminium profile.
Opening by means of 90º turn with locking and auto-return.

References:
26106003/1
26106003/3
26106003F1
26106003F3
26106003i10-1
26106003i10-3
26106003D1
26106003D3
26106003S10-1
26106003S10-3
26106003B1
26106003B3
26106003A1
26106003A3
26106003E1
26106003E3
26106003AU1
26106003AU3

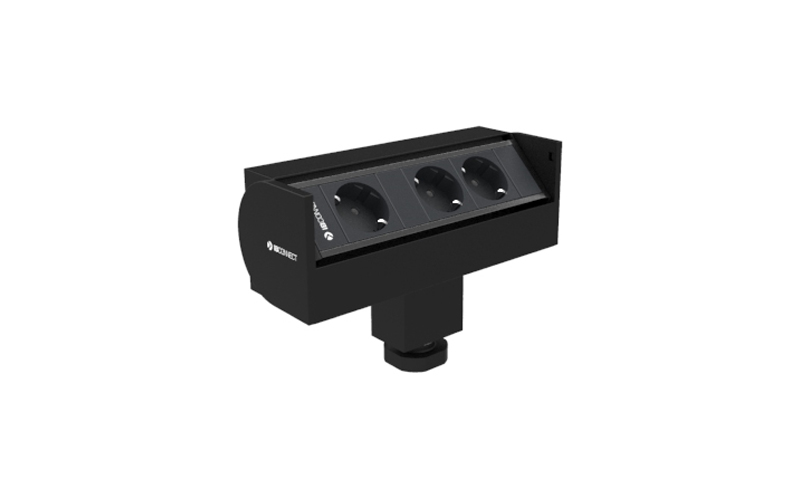

PRISMA SUPPORT - 3xSocket outlet | IBConnect
PRISMA SUPPORT - 3 x SOCKET OUTLET
3 socket outlets fully wired.
Power input through cable with male rapid connector at end.
High fixation with support.
Mounted on aluminium profile black lacquered.
Structure made of aluminium profile.
Opening by means of 90º turn with locking and auto-return.

References:
26106004/1
26106004/3
26106004F1
26106004F3
26106004i10-1
26106004i10-3
26106004D1
26106004D3
26106004S10-1
26106004S10-3
26106004B1
26106004B3
26106004A1
26106004A3
26106004E1
26106004E3
26106004AU1
26106004AU3

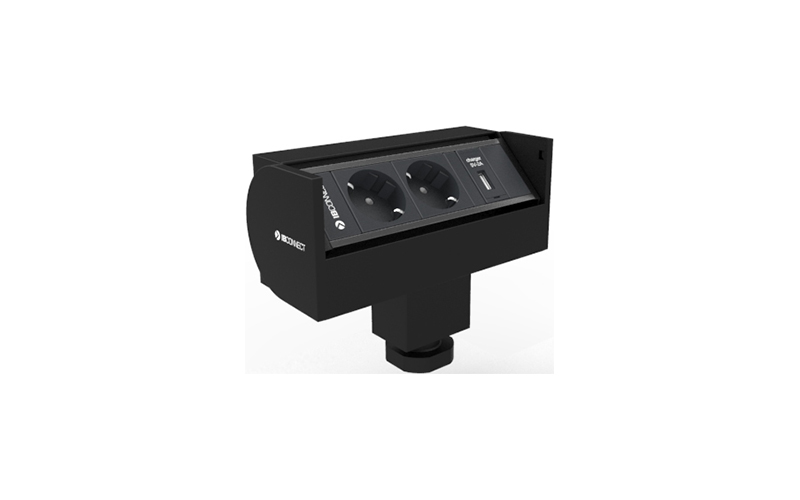

PRISMA SUPPORT - 2xSocket outlet + 1xUSB charge | IBConnect
PRISMA SUPPORT - 2 x SOCKET OUTLET + 1 x USB CHARGER
2 socket outlets fully wired.
1 USB charger connector 5V/2A.
Power input through cable with male rapid connector at end.
High fixation with support.
Mounted on aluminium profile black lacquered.
Structure made of aluminium profile.
Opening by means of 90º turn with locking and auto-return.

References:
26106005/1
26106005/3
26106005F1
26106005F3
26106005i10-1
26106005i10-3
26106005D1
26106005D3
26106005S10-1
26106005S10-3
26106005B1
26106005B3
26106005A1
26106005A3
26106005E1
26106005E3
26106005AU1
26106005AU3
