Duplo kit

Organised connection for wall and partitions
Highly adaptable organisation and distribution, concealing all the cables in the installation.
Duplo kit

Producto

Description

Double function
The Duplo system consists of two rails, one electrified and another one with a space for organising cables, allowing loose wiring to be concealed and guaranteeing a rapid, ordered and safe installation.

Organised application
Ideal for installations where the origin is the wall and the idea is to maintain order and the organisation of the connected cables.

No limits to configuration
It is possible to manufacture made-to-measure electrification, since the length adapts to the necessary connections for each project.


Applications

  • Offices.
  • Laboratories.
  • Industrial work station.

Features

  • Space for organising cables.
  • Space prepared for installation of Orgatech vertebra adapter.
  • Easy fixing system.
  • Possibility of housing three-phase elements.

Technical specifications

  • Made of aluminium, C27 natural anodized finish.
  • Power and data input through the back or the side.
  • Power input connection via internal terminal.
  • Fixed by screws on back.

Dimensions of the table cut

Details that make us different

  • A medida Custom-made.
  • Orgatech Compatible with Orgatech.
  • Compatible Compatible with "Ultra-Compact USB Smart Charging System" up to 60W.





Measures

Duplo Kit | IB Connect

Image Gallery

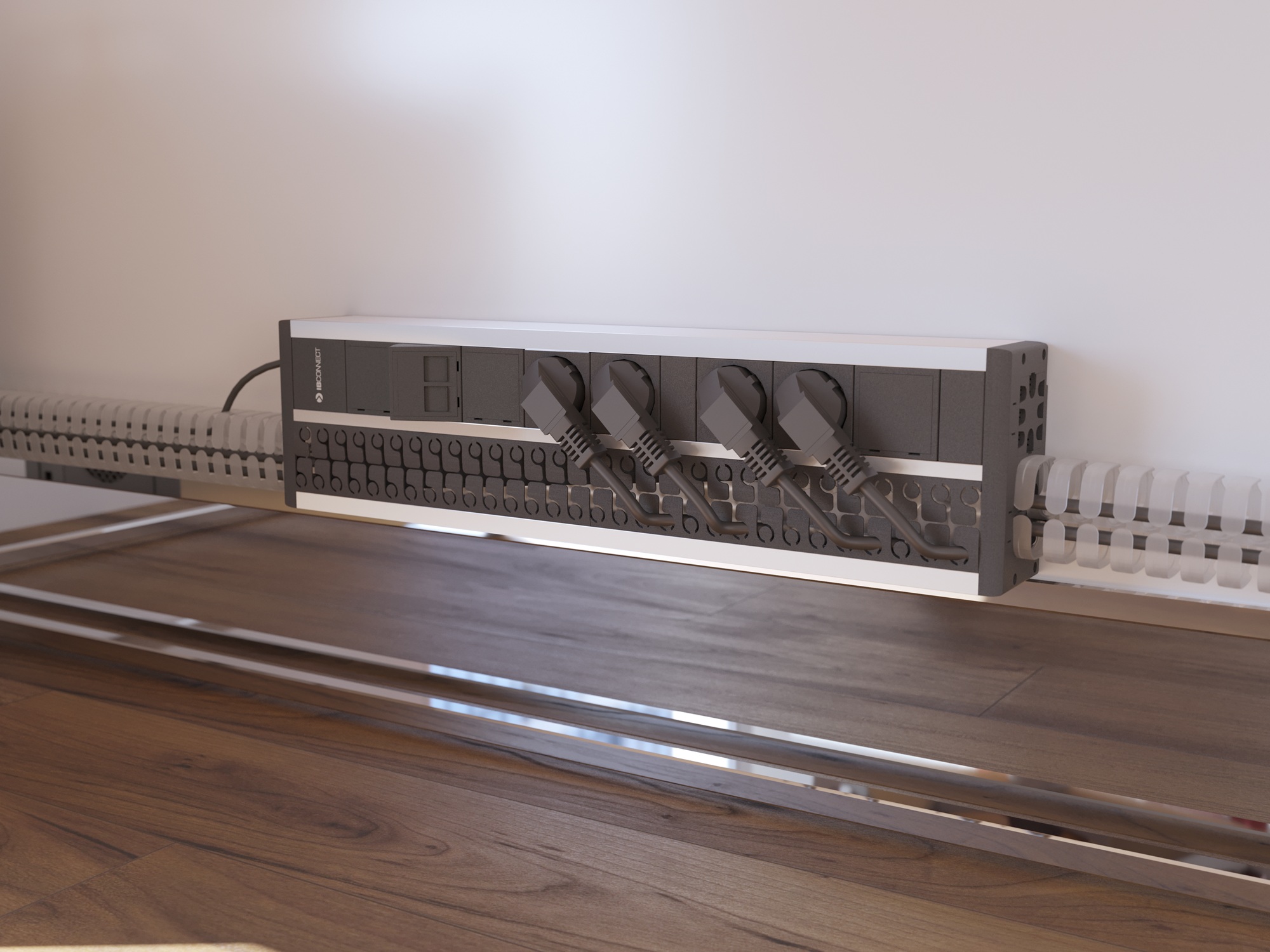

Anodized Duplo Kit fixed to wall with ice finish Orgatech vertebrae connected.

Downloads

DUPLO Kit, downloads:
KIT DUPLO | IBConnect
DUPLO KIT - 4 x SOCKET OUTLET + 1 x 2 RJ45 COVER + ORGANIZER

4 Socket outlets fully wired.
1 cover for 2 RJ45 connectors compatible with Keystone system (connectors not included).
Space for organizing cables.
Possibility to adapt Vertebra in the lateral cover.
Mounted on aluminium profile.


References:
84108001/3
84108001F3
84108001i10-3
84108001D3
84108001S10-3
84108001B3
84108001A3
84108001E3
84108001AU3
KIT DUPLO | IBConnect
DUPLO KIT - 2 x SOCKET OUTLET + 2 x RED SOCKET OUTLET + 1 x 2 RJ45 COVER + ORGANIZER

2 Socket outlets fully wired.
2 Red socket outlets fully wired.
1 cover for 2 RJ45 connectors compatible with Keystone system (connectors not included).
Space for organizing cables.
Possibility to adapt Vertebra in the lateral cover.
Mounted on aluminium profile.


References:
84108002/3
84108002F3
84108002i10-3
84108002D3
84108002S10-3
84108002B3
84108002A3
84108002E3
84108002AU3
