Duplo Charge Point

Multi-device charge point
Charge point for your laptop or gadgets, specially designed for waiting rooms of airports, stations, etc.
Duplo Charge Point

Producto

Description

Installation at the surface
Ideal for waiting rooms where the origin of the power supply is the raised floor or the surface and where you want to offer users the possibility of recharging their laptops or gadgets. It can be adapted to any already-existing installation.

Flexibility in configuration
The fact that it can be single- or double-sided makes it perfect for installations which require flexibility in the number of users. Likewise, sockets from different countries can be incorporated into the same installation, thus increasing even more its flexibility and adaptability.

Applications

  • Waiting rooms.
  • Airports.
  • Stations.
  • Hotels.
  • Universities.
  • Libraries.
  • Meeting points.

Features

  • Incorporates electricity sockets from different countries.
  • Incorporates USB charging ports.
  • Single- or double-sided electrification.
  • Easy floor-mounting system with watertight ring.

Technical specifications

  • Made of aluminium, with C27 natural anodised finish.
  • Entry of power supply through the bottom by means of internal terminal.
  • Secured to the floor by means of screw-on metal support.
  • Supplied fully cabled, with watertight ring, ground fixing plate and ground base trim.

Dimensions of the table cut

Details that make us different

  • A medida Custom-made.
  • Compatible Compatible with "Ultra-Compact USB Smart Charging System" up to 60W.




Measures

Duplo Charge Point | IBConnect

Image Gallery

Duplo Charge Point | IBConnect

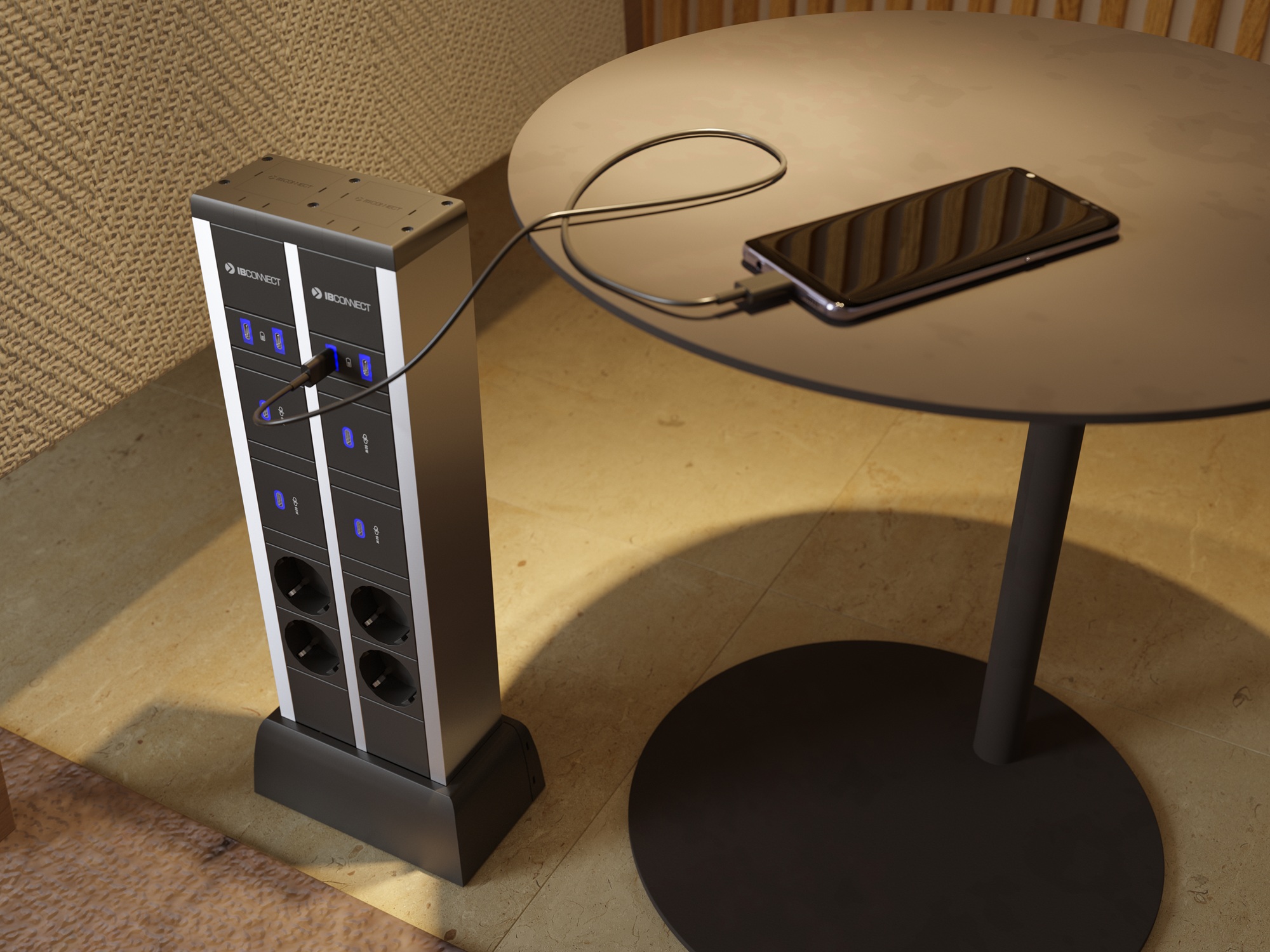

Duplo Charge Point installed on a waiting room of a hotel.
Duplo Charge Point | IBConnect
 Duplo Charge Point | IBConnect
 Duplo Charge Point | IBConnect

Downloads

DUPLO Charge Point downloads:
> Product brochure
4xSocket outlets + 2xUSB charge | IBConnect
CHARGE POINT - 4 x SOCKET OUTLET + 2 x USB CHARGE
2 schuko socket outlets fully wired with 2,5mm2 halogen free cable.
1 British socket outlet fully wired with 2,5mm2 halogen free cable.
1 American socket outlet fully wired with 2,5mm2 halogen free cable.
2 USB charge connectors 5V/2A.
Mounted on aluminium profile.
References:
85108004/3
4xSocket outlets + 4xUSB charge | IBConnect
CHARGE POINT - 4 x SOCKET OUTLET + 4 x USB CHARGE
2 schuko socket outlets fully wired with 2,5mm2 halogen free cable.
1 British socket outlet fully wired with 2,5mm2 halogen free cable.
1 American socket outlet fully wired with 2,5mm2 halogen free cable.
4 USB charge connectors 5V/2A.
Mounted on aluminium profile.
References:
85108003/3
