PDC

Concealed and consolidated distribution point
Perfect for installations with technical floor or technical ceiling.
PDC

Producto

Description

Flexible installation
Depending on your needs, the PDC box becomes an electrical distribution point, a consolidated data point, or even better, a combination of both.

Ideal for installations with technical flooring, preparing the horizontal installation with power and data, awaiting connection to the work stations.





Applications

  • Technical floor.
  • Technical ceiling.

Features

  • Reduced height of the box.
  • Combination in the same box of power and data.

Technical specifications

  • Made of lacquered black aluminium (Ral 9017), with metal fixing structure and cover.
  • Power input through male rapid connector.
  • Power output through female rapid connector or 2P+T socket.
  • Multimedia wire input through the centre of the box.
  • RJ45 connector fixing plates.
  • Fixed to the ground with screws.

Dimensions of the table cut

Details that make us different

  • Multmedia configurable Configurable multimedia.
  • A medida Custom-made.
  • Compatible Compatible with "Ultra-Compact USB Smart Charging System" up to 60W.



Measures

PDC | Technical drawing and levels | IB Connect

Image Gallery

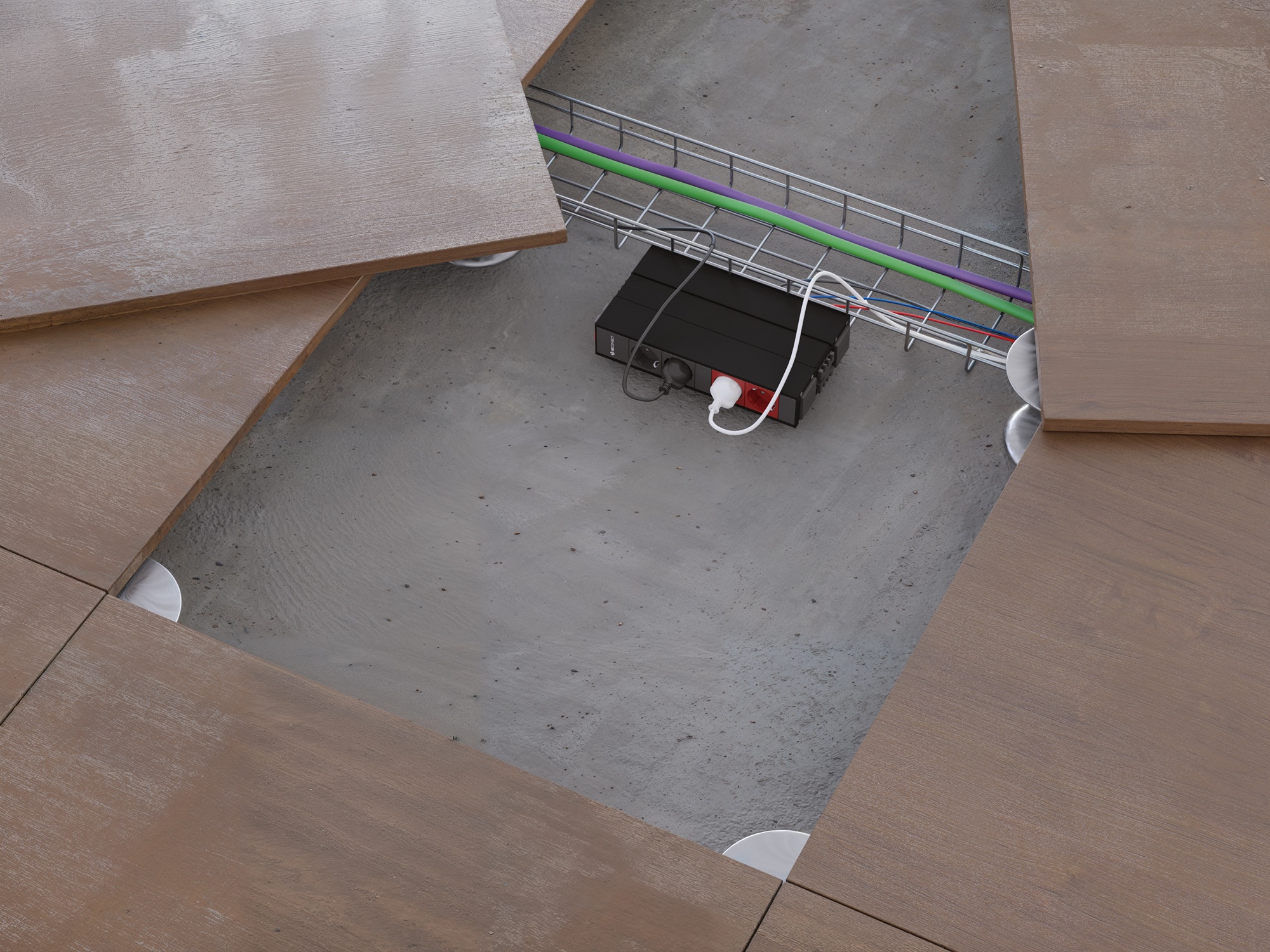

PDC installed on technical floor, used as a power and data distribution point.

Downloads

PDC, downloads:
METTALIC DISTRIBUTION BOX | IBConnect
PDC - 4 x BLACK RAPID CONNECTOR + 4 x RED RAPID CONNECTOR
1 input through black male rapid connector and 4 outputs through black female rapid connector.
1 input through red male rapid connector and 4 outputs through red female rapid connector.
Mounted on aluminium profile.

References:
33117001/3
GST18 hembras negro y rojo.
METTALIC DISTRIBUTION BOX | IBConnect
PDC - 6 x SOCKET OUTLET + 6 x SOCKET OUTLET RED
1 input through black male rapid connector and 6 socket outlets.
1 input through red male rapid connector and 6 red socket outlets.
Mounted on aluminium profile.

References:
33118001/3
33118001F3
33118001i10-3
33118001D3
33118001S10-3
33118001B3
33118001A3
33118001E3
33118001AU3
DISTRIBUTION BOX + CONSOLIDATED POINT (PDC) | IBConnect
PDC - 6 x SOCKET OUTLET + 5 x 2 RJ45 COVER
1 input through black male rapid connector and 6 socket outlets.
PDC for 10 RJ45 UTP connectors (Cat5e/Cat6)
Mounted on aluminium profile.

References:
33118002/3
33118002F3
33118002i10-3
33118002D3
33118002S10-3
33118002B3
33118002A3
33118002E3
33118002AU3
DISTRIBUTION BOX + CONSOLIDATED POINT (PDC) | IBConnect
PDC - 5 x RAPID CONNECTOR BLACK + 5 x RAPID CONNECTOR RED + 5 x 2 RJ45 COVER
1 input through black male rapid connector and 5 outputs through black female rapid connector.
1 input through red male rapid connector and 5 outputs through red female rapid connector.
PDC for 10 RJ45 UTP connectors (Cat5e/Cat6).
Mounted on aluminium profile.

References:
33118003/3
GST18 hembras negro y rojo y Placa RJ45
