Multifunction connection dock
Our solution for electrification and cable guide lighter and more discreet for floor, ceiling or desk.
Unit

Producto

Description

In furniture
The basic solution for the electrical and multimedia connectivity of a work station. It fixes the Orgatech vertebra directly and includes cable guide space for auxiliary cable access.

In technical flooring
Not electrified, the Orgatech vertebra can be fixed directly on the ground or the technical ceiling; this is the beginning of the cable organization in an installation.


Applications

  • Offices.
  • Hotel furniture.
  • Libraries.
  • Shop furniture.
  • Technical floor.
  • Technical ceiling.

Features

  • Quick and easy to change multimedia modules.
  • Prepared to adapt Orgatech vertebra.
  • Installation through hole with circular crown (ø 102mm).

Technical specifications

  • Made of flame-retardant PC plastic.
  • Finished in white (RAL 9016) or grey (RAL 7016).
  • Power input through cable with male rapid connector on end.
  • Power and data input from lower part.
  • Fixed by scrollable tabs (from 8mm to 42mm) with automatic return on disassembly.

Dimensions of the table cut

Details that make us different

  • White Available in white.
  • Multmedia configurable Configurable multimedia.
  • Orgatech Compatible with Orgatech.



Measures

Unit | IBConnect

Image Gallery

Unit installed on a library, fixed through vertebra Orgatech to the ground Unit.

Downloads

UNIT, downloads:
1xSocket outlet + 1xUSB Charge | IBConnect
UNIT - 1 x SOCKET OUTLET + 1 x USB CHARGER
1 socket outlet fully wired.
1 USB charger connector 5V/2A.
Power input through cable with male rapid connector on end.

References:
46203002/1
T. Schuko blanco
46203002/3
T. Schuko gris antracita
46203002F1
Toma Francesa blanco
46203002F3
Toma Francesa gris antracita
46203002i10-1
46203002i10-3
46203002D1
46203002D3
46203002S10-1
46203002S10-3
46203002B1
Toma Británica blanca
46203002B3
Toma Británica gris antracita
46203002A1
Toma Americana blanca
46203002A3
Toma Americana gris antracita
46203002E1
Toma Euroamericana blanca
46203002E3
Toma Euroamericana gris antracita
46203002AU1
46203002AU3
UNIT - 1 X SOCKET OUTLET + 1 X DOUBLE USB CHARGER

1 socket outlet fully wired.
1 double USB charger connector 5V/2A.
Power input through cable with male rapid connector on end.


References:
46102003/1
46102003/3
46102003F1
46102003F3
46102003i10-1
46102003i10-3
46102003D1
46102003D3
46102003S10-1
46102003S10-3
46102003B1
46102003B3
46102003A1
46102003A3
46102003E1
46102003E3
46102003AU1
46102003AU3
1xSocket outlet | IBConnect
UNIT - 1 x SOCKET OUTLET

1 socket outlet fully wired.
Power input through cable with male rapid connector on end.


References:
46101001/1
T. Schuko blanco
46101001/3
T. Schuko gris antracita
46101001F1
Toma Francesa blanco
46101001F3
Toma Francesa gris antracita
46101001i10-1
46101001i10-3
46101001D1
46101001D3
46101001S10-1
46101001S10-3
46101001B1
Toma Británica blanca
46101001B3
Toma Británica gris antracita
46101001A1
Toma Americana blanca
46101001A3
Toma Americana gris antracita
46101001E1
Toma Euroamericana blanca
46101001E3
Toma Euroamericana gris antracita
46101001AU1
46101001AU3
1xSocket outlet + 1x1RJ45 cover | IBConnect
UNIT - 1 x SOCKET OUTLET + 1 x 1 RJ45 COVER

1 socket outlet fully wired.
1 cover for 1 RJ45 connector compatible with Keystone system (connector not included).
Power input through cable with male rapid connector on end.


References:
46102001/1
T. Schuko blanco
46102001/3
T. Schuko gris antracita
46102001F1
Toma Francesa blanco
46102001F3
Toma Francesa gris antracita
46102001i10-1
46102001i10-3
46102001D1
46102001D3
46102001S10-1
46102001S10-3
46102001B1
Toma Británica blanca
46102001B3
Toma Británica gris antracita
46102001A1
Toma Americana blanca
46102001A3
Toma Americana gris antracita
46102001E1
Toma Euroamericana blanca
46102001E3
Toma Euroamericana gris antracita
46102001AU1
46102001AU3
UNIT - 1 X SOCKET OUTLET + 2 X RJ45 CAT6

1 socket outlet fully wired.
2 Rj45 cat6 connectors female/female.
Power input through cable with male rapid connector on end.


References:
46102002/1
46102002/3
46102002F1
46102002F3
46102002i10-1
46102002i10-3
46102002D1
46102002D3
46102002S10-1
46102002S10-3
46102002B1
46102002B3
46102002A1
46102002A3
46102002E1
46102002E3
46102002AU1
46102002AU3
UNIT | IB Connect
UNIT - CABLE GROMMET for desk
UNIT cable grommet to built-in in desk.
Outlet with Vertebra Orgatech coupling.
Diameter 98mm.

References:
46100001/1
Blanco
46100001/3
Gris antracita
UNIT | IBConnect

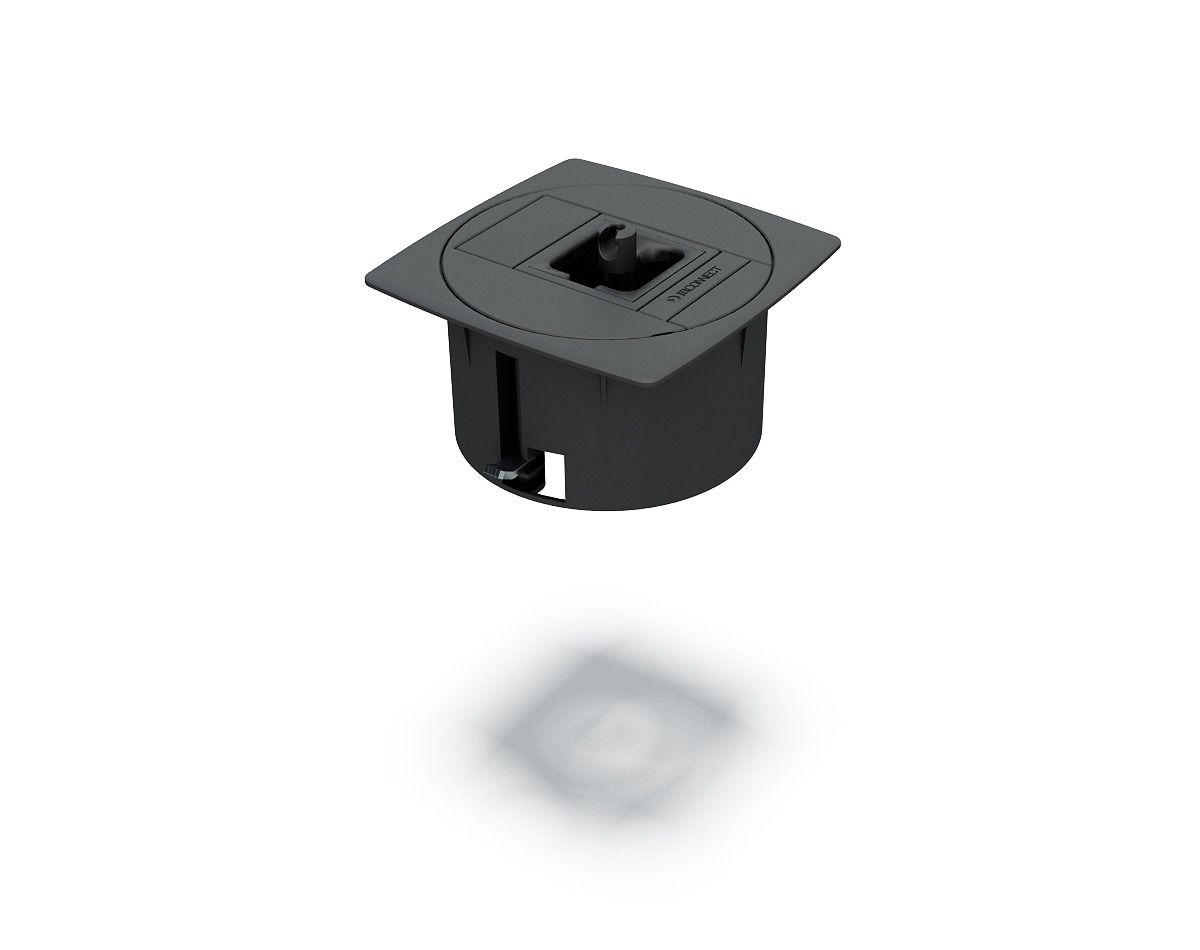

UNIT - CABLE GROMMET FOR FLOOR/CEILING
UNIT cable grommet to built-in in technical floor or false ceiling.
Outlet with Vertebra Orgatech coupling.
Diameter 98mm.

References:
46100002/1
Blanco
46100002/3
Gris antracita
