Intro2.0

Built-in design connection
The built-in solution for tables or walls, more compact for electrical, data and multimedia connections.
Intro2.0

Producto

Description

Very small design without limits
Its design allows manufacturing any custom configuration with very small dimensions. It can be adapted to include the necessary
connections for each project.
Rapid connection
Power supply through cable with rapid connector at the end. Also manufactured with other connection systems on request.
An organized work station
Our cable organization system can be added to all INTRO electrifications to avoid disorder in connections on the work station surface.

Details that make us different

Available in white | IB Connect
Configurable Multimedia | IB Connect
Compatible with Orgatech  | IB Connect
Custom manufacturing  | IB Connect

Applications

  • Operational office furniture.
  • Libraries.
  • School furniture.
  • Auditorium chairs.
  • Hotel furniture.
  • Partitions.

Features

  • Data and multimedia inputs with direct access on back.
  • Quick and easy multimedia modules change.
  • Fixing hidden under the side flaps for easy installation.

Technical specifications

  • Made of aluminium, C27 natural anodized finish or matt white lacquered (RAL 9010).
  • Power input through cable with rapid connector at end.
  • Data and multimedia inputs on back of profile.
  • Fixed by scrollable tabs (5mm to 30mm) with automatic return on disassembly.

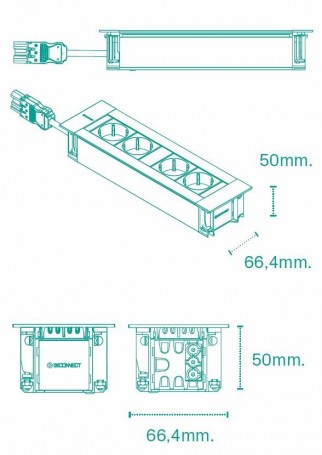

Technical drawing and levels

Intro2.0 | IBConnect

Image Gallery

INTRO2.0 environment

Downloads

INTRO2.0, downloads:
INTRO2.0
INTRO2.0 - 1 x SOCKET OUTLET + 1 x USB CHARGER + 1 x 1RJ45 COVER
1 Socket outlet fully wired with 2,5mm² halogen free cable.
1 USB charger connector 5V/2A.
1 cover for 1 RJ45 connector compatible with keystone system.
Power input through 300mm cable with male rapid connector.
Mounted on aluminium profile.

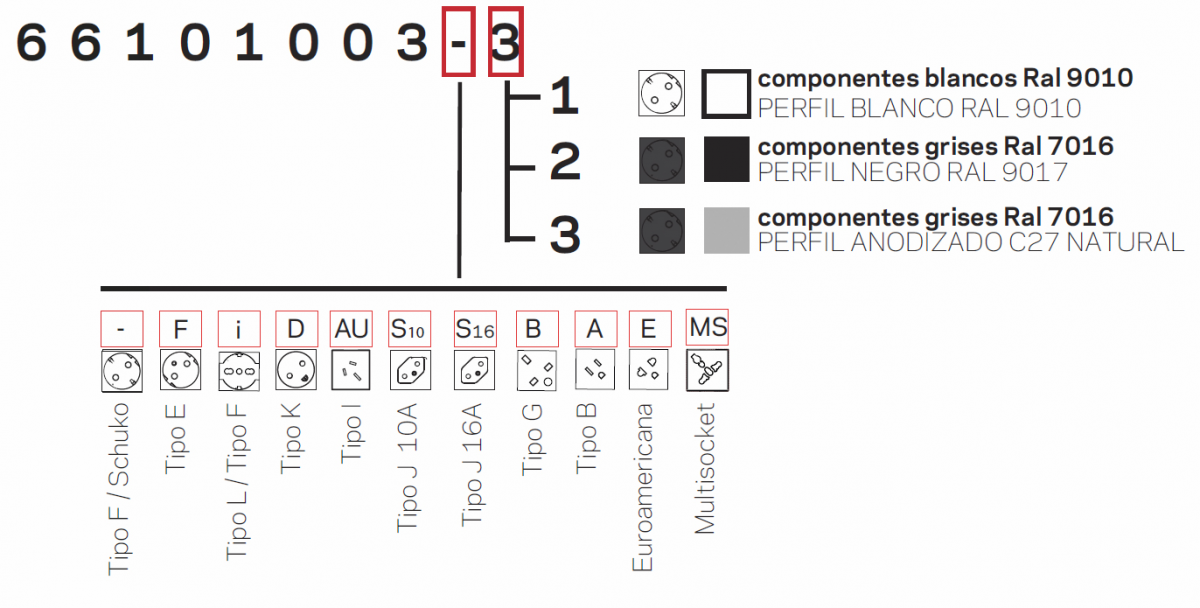

References:
66103001/1
66103001/3
66103001F1
66103001F3
66103001i1
66103001i3
66103001D1
66103001D3
66103001S1
66103001S3
66103001B1
66103001B3
66103001A1
66103001A3
66103001E1
66103001E3
INTRO2.0
INTRO2.0 - 2 x SOCKET OUTLET
2 Socket outlets fully wired with 2,5mm² halogen free cable.
Power input through 300mm cable with male rapid connector.
Mounted on aluminium profile.

References:
66101001/1
66101001/3
66101001F1
66101001F3
66101001i1
66101001i3
66101001D1
66101001D3
66101001S1
66101001S3
66101001B1
66101001B3
66101001A1
66101001A3
66101001E1
66101001E3
INTRO2.0
INTRO2.0 - 2 x SOCKET OUTLET + 1 x USB CHARGER
2 Socket outlets fully wired with 2,5mm² halogen free cable.
1 USB charger connector 5V/2A.
Power input through 300mm cable with male rapid connector.
Mounted on aluminium profile.

References:
66103002/1
66103002/3
66103002F1
66103002F3
66103002i1
66103002i3
66103002D1
66103002D3
66103002S1
66103002S3
66103002B1
66103002B3
66103002A1
66103002A3
66103002E1
66103002E3
INTRO2.0
INTRO2.0 - 3 x SOCKET OUTLET
3 Socket outlets fully wired with 2,5mm² halogen free cable.
Power input through 300mm cable with male rapid connector.
Mounted on aluminium profile.

References:
66101002/1
66101002/3
66101002F1
66101002F3
66101002i1
66101002i3
66101002D1
66101002D3
66101002S1
66101002S3
66101002B1
66101002B3
66101002A1
66101002A3
66101002E1
66101002E3

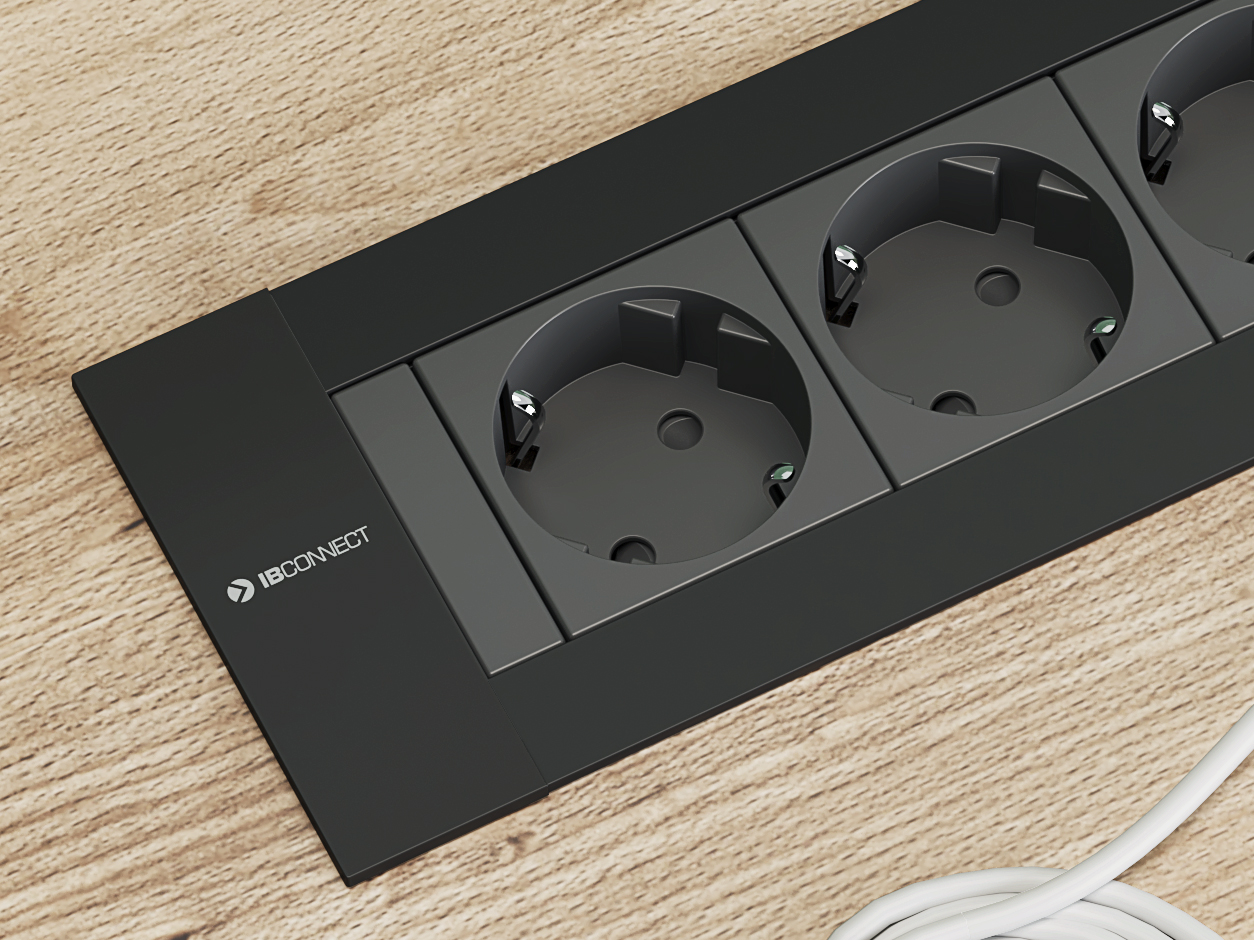

INTRO2.0 - 4 x SOCKET OUTLET
4 Socket outlets fully wired with 2,5mm² halogen free cable.
Power input through 300mm cable with male rapid connector.
Mounted on aluminium profile.

References:
66101003/1
66101003/3
66101003F1
66101003F3
66101003i1
66101003i3
66101003D1
66101003D3
66101003S1
66101003S3
66101003B1
66101003B3
66101003A1
66101003A3
66101003E1
66101003E3
INTRO2.0 - 2 x SOCKET OUTLET + 2 x RED SOCKET OUTLET + 1 x 2RJ45 COVER
2 Socket outlets fully wired with 2,5mm² halogen free cable.
2 Red socket outlets fully wired with 2,5mm² halogen free cable.
1 cover for 2 RJ45 connectors compatible with keystone system.
Input for each power circuit through 300mm cable with male rapid connector.
Mounted on aluminium profile.

References:
66102001/1
66102001/3
66102001F1
66102001F3
66102001i1
66102001i3
66102001D1
66102001D3
66102001S1
66102001S3
66102001B1
66102001B3
66102001A1
66102001A3
66102001E1
66102001E3
INTRO2.0 - 3 x SOCKET OUTLET + 1 x EMPTY MODULE
3 Socket outlets fully wired with 2,5mm² halogen free cable.
1 Empty module with rear direct access.
Power input through 300mm cable with male rapid connector.
Mounted on aluminium profile.

References:
66103003/1
66103003/3
66103003F1
66103003F3
66103003i1
66103003i3
66103003D1
66103003D3
66103003S1
66103003S3
66103003B1
66103003B3
66103003A1
66103003A3
66103003E1
66103003E3
INTRO2.0 - 3 x SOCKET OUTLET + 2 x EMPTY MODULE
3 Socket outlets fully wired with 2,5mm² halogen free cable.
2 Empty modules with rear direct access.
Power input through 300mm cable with male rapid connector.
Mounted on aluminium profile.

References:
66103004/1
66103004/3
66103004F1
66103004F3
66103004i1
66103004i3
66103004D1
66103004D3
66103004S1
66103004S3
66103004B1
66103004B3
66103004A1
66103004A3
66103004E1
66103004E3
INTRO2.0 - 4 x SOCKET OUTLET + 2 x EMPTY MODULE
4 Socket outlets fully wired with 2,5mm² halogen free cable.
2 Empty modules with rear direct access.
Power input through 300mm cable with male rapid connector.
Mounted on aluminium profile.

References:
66103005/1
66103005/3
66103005F1
66103005F3
66103005i1
66103005i3
66103005D1
66103005D3
66103005S1
66103005S3
66103005B1
66103005B3
66103005A1
66103005A3
66103005E1
66103005E3
INTRO2.0 - 2 x SOCKET OUTLET + 2 x RED SOCKET OUTLET + 2 x EMPTY MODULE
2 Socket outlets fully wired with 2,5mm² halogen free cable.
2 Red socket outlets fully wired with 2,5mm² halogen free cable.
2 Empty modules with rear direct access.
Input for each power circuit through 300mm cable with male rapid connector.
Mounted on aluminium profile.

References:
66103006/1
66103006/3
66103006F1
66103006F3
66103006i1
66103006i3
66103006D1
66103006D3
66103006S1
66103006S3
66103006B1
66103006B3
66103006A1
66103006A3
66103006E1
66103006E3
INTRO2.0 - 4 x SOCKET OUTLET + 1 x EMPTY MODULE + ORG
4 Socket outlets fully wired with 2,5mm² halogen free cable.
1 Empty module with rear direct access.
225mm Cable organizer with ORGATECH membrane.
Power input through 300mm cable with male rapid connector.
Mounted on aluminium profile.

References:
66108001/1
66108001/3
66108001F1
66108001F3
66108001i1
66108001i3
66108001D1
66108001D3
66108001S1
66108001S3
66108001B1
66108001B3
66108001A1
66108001A3
66108001E1
66108001E3
INTRO2.0 - 2 x SOCKET OUTLET + 2 x RED SOCKET OUTLET + 1 x 2RJ45 COVER + ORG
2 Socket outlets fully wired with 2,5mm² halogen free cable.
2 Red socket outlets fully wired with 2,5mm² halogen free cable.
1 cover for 2 RJ45 connectors compatible with keystone system.
225mm Cable organizer with ORGATECH membrane.
Input for each power circuit through 300mm cable with male rapid connector.
Mounted on aluminium profile.

References:
66108002/1
66108002/3
66108002F1
66108002F3
66108002i1
66108002i3
66108002D1
66108002D3
66108002S1
66108002S3
66108002B1
66108002B3
66108002A1
66108002A3
66108002E1
66108002E3
